/ 01
68keys, super quality SUS304 brushed stainless steel
Actuator/keys
/ 02
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keysare available
Key top style
/ 03
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x70.0mmfor space bar
Key Size
/ 04
1.50±0.10mm
Key travel
Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

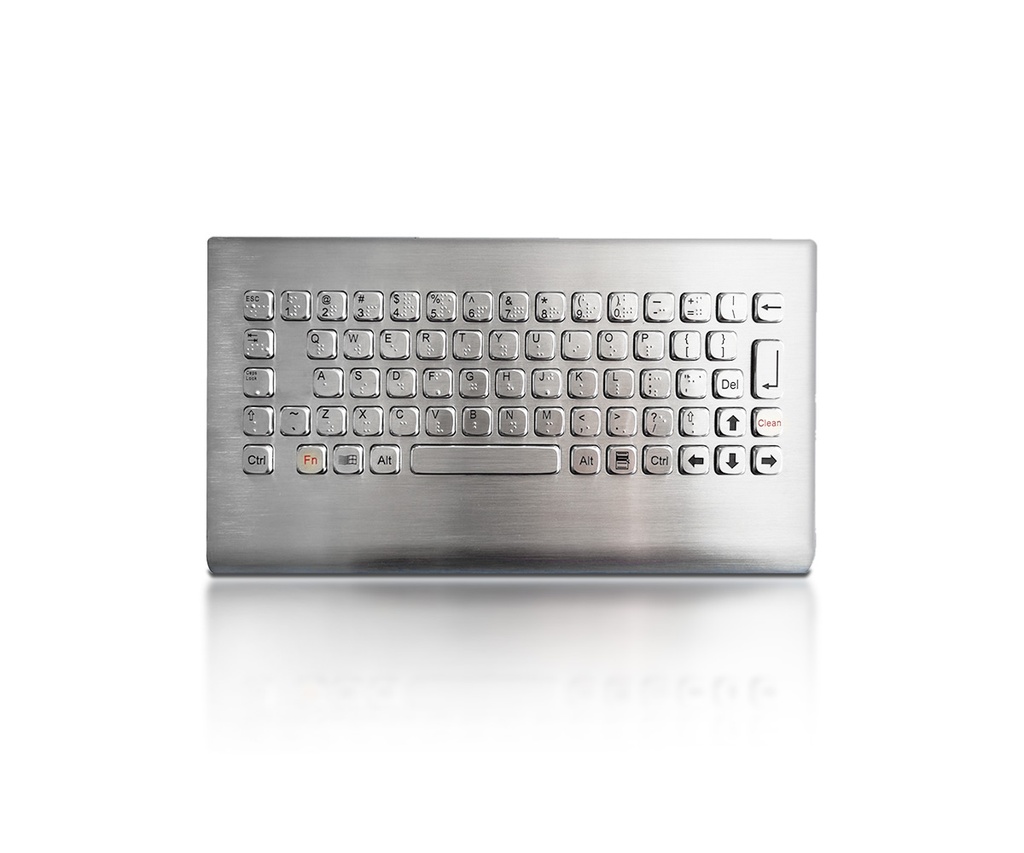

DESCRIPTION: 68 keys compact format IP68 dynamic washable vandal proof stainless steel industrial keyboard , industrial PCB with
carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input
without any noise. FN+CLEAN combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard
from computer. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil,
dirt, salt mist etc. Metal housing with screw holes for wall mounting,mountable wall DESK TOP VERSION.
DIMENSIONS: 290.0mm x 165.0mm x (37+23)mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 68keys, super quality SUS304 brushed stainless steel |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keysare available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x70.0mmfor space bar |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2Nfor key 14.0mm x 14.0mm (pressure point ),2.5N±0.2Nfor key 14.0mm x 28.0mm(pressure point) |
| Frontand BackPlate | Super quality brushed stainless steel |
| Switch life | more than5million of operations |
| G.W. | 2.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | +5V DC ±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP68 |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,explosion-proof automation, oil and gas etc. |
