Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

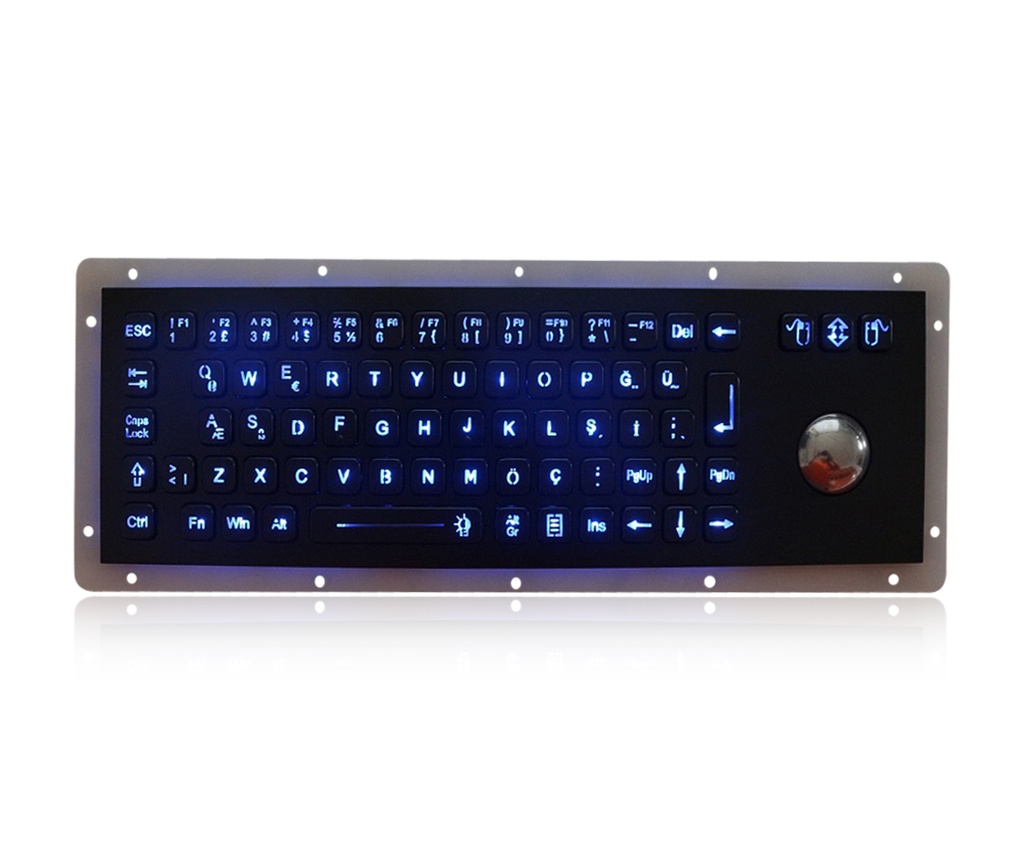

DESCRIPTION: 71 keys compact format IP65 dynamic washable vandal proof stainless steel industrial keyboard with IP68 dynamic sealed & ruggedized
trackball for fast and accurate cursor position, industrial PCB with carbon-on gold key switch technology with long stroke (1.50±0.10mm) with extremely
good tactile feeling for fast and accurate data input without any noise. one complete sealing silicone rubber above rear stainless steel plate for easy
mounting & sealing tightly with cabinet, rear stainless steel plate with mounting holes for rear panel mounting solution. Stainless steel key caps etched
out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included(Blue, Red, White colors
etc. optional), high quality durable black titanium electroplated on the top stainless steel plate and all keys.Which is good for outdoor application with
direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 343.0mm x 105.0mm (Top Panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 71keys(including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x70.0mm for space bar |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2Nfor key 14.0mm x 14.0mm (pressure point ),2.5N±0.2Nfor key 14.0mm x 28.0mm(pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 3.0mm thickness brushed & oxidized aluminiumor 1.5mmthicknessbrushed stainless steelare available. |
| Switch life | more than5million of operations |
| Tracker ball | 38.0mm stainless steel opticaltrackball module, silver resin ball module optional |
| G.W. | 1.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65dynamic(front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proofautomation, oil and gas etc. |
