/ 01
70keys(including 2 mouse buttons), super quality SUS304 brushed stainless steel
Actuator/keys
/ 02
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key top style
/ 03
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x70.0mm for space bar
Key Size
/ 04
1.50±0.10mm
Key travel
Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

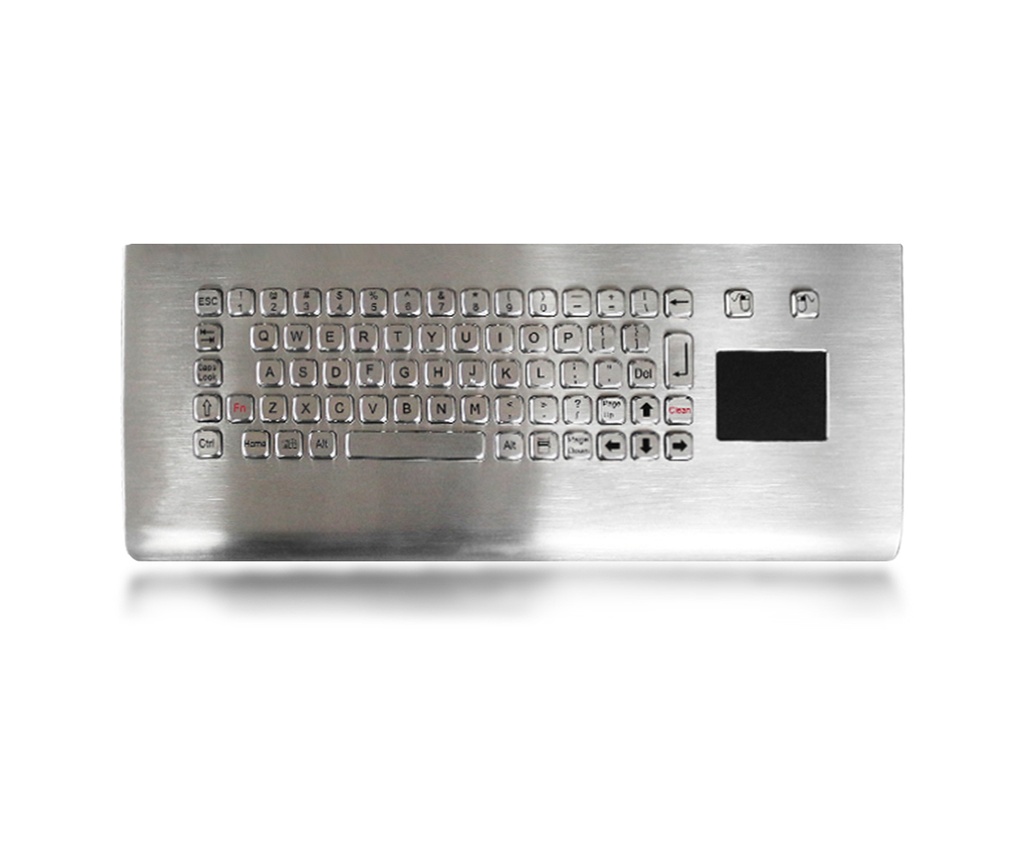

DESCRIPTION: 70 keys compact format IP68 dynamic sealed and ruggedized vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, industrial PCB with carbon-on gold key switch technology with long stroke (1.50±0.10mm) with excellent tactile feeling for fast and accurate data input, wall mountable desktop version. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 403.0mm x 165.0mm x 60.0mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 70keys(including 2 mouse buttons), super quality SUS304 brushed stainless steel |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x70.0mm for space bar |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2Nfor key 14.0mm x 14.0mm (pressure point ),2.5N±0.2Nfor key 14.0mm x 28.0mm (pressure point) |
| Frontand BackPlate | Super quality brushed stainless steel |
| Switch life | more than5million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending oncable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | <10mA |
| G.W. | 3.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | +5V DC ±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP68 |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,explosion-proof automation, oil and gas etc. |
