Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

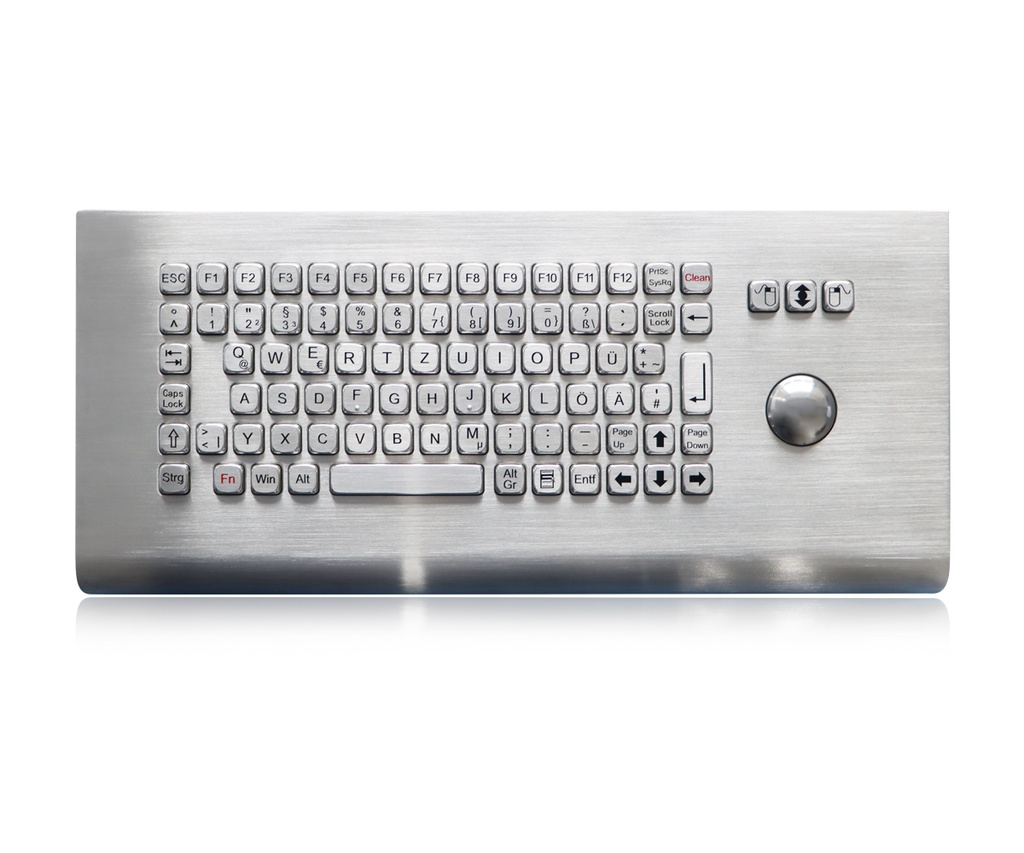

DESCRIPTION: 86 keys (including 3 mouse buttons) compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP65
38.0mm stainless steel mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position, industrial PCB with carbon-on-gold
key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional
keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with
ball rolling, wall mounted desktop version. FN + CLEAN combination key to lock/disable the entire keyboard for easy cleaning and washing without
needing to take away the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity,
much dynamic water, oil, dirt, salt mist etc.
DIMENSION: 403.0mm x 175.0mm x 37.0mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 86keys(including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
| Tracker ball | 38.0mm mechanical trackball module |
| G.W. | 3.50KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proofautomation, oil and gas etc. |
