Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

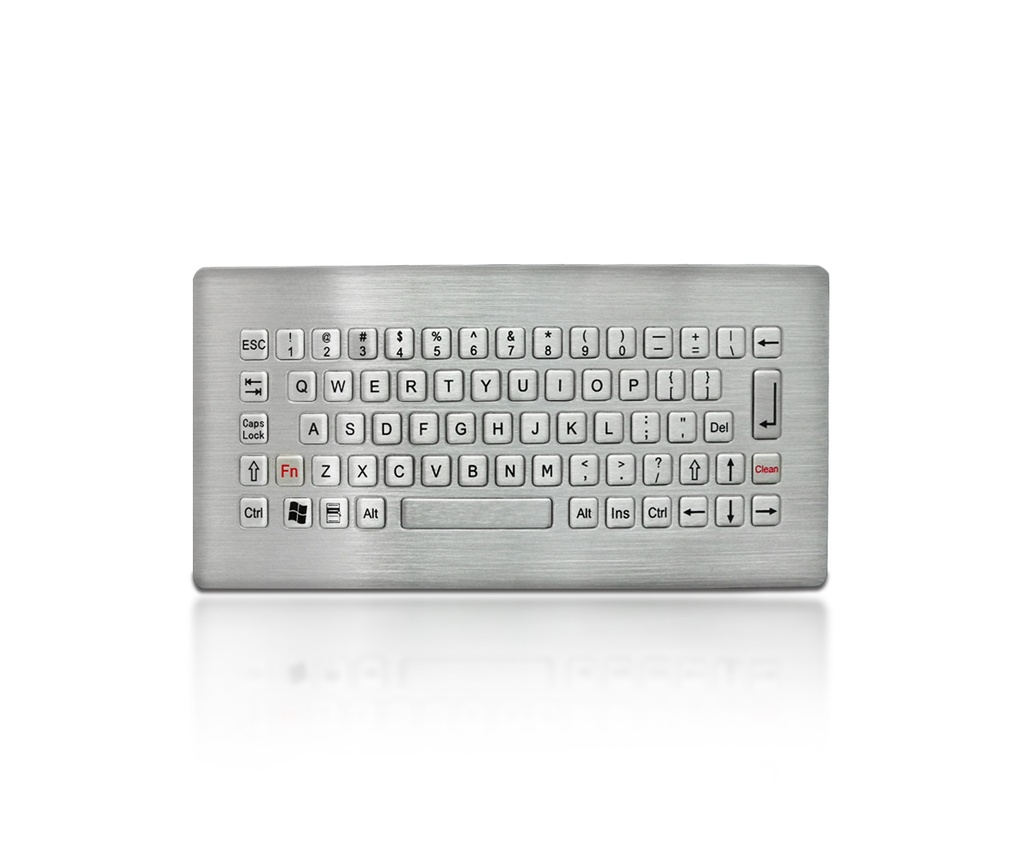

DESCRIPTION: 68 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with industrial metal dome PCB with gold-on gold key switch technology with short stroke 0.45±0.05mm with excellent tactile feeling for stable and accurate data input, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust riskand anti salt spray corrosion.
DIMENSIONS: 228.0mm x 108.0mm (front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 68keys |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legendson keys are available |
| Key Size | 10.0mm x 10.0mm for normal keys, 10.0mm x 23.0mm for enter key, 10.0mm x53.0mm for space bar |
| Key travel | 0.45±0.05mm |
| Actuation Force | 2.5N±0.2Nfor key 10.0mm x 10.0mm (pressure point ),5.0N±0.4Nfor key 10.0mm x 23.0mm (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 1.5mm thickness super quality brushed stainless steel |
| Switch life | more than1million of operations |
| G.W. | 1.20KGs |
| ELECTRICAL DATA | |
| Supply Voltage | +5V DC ±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
