Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

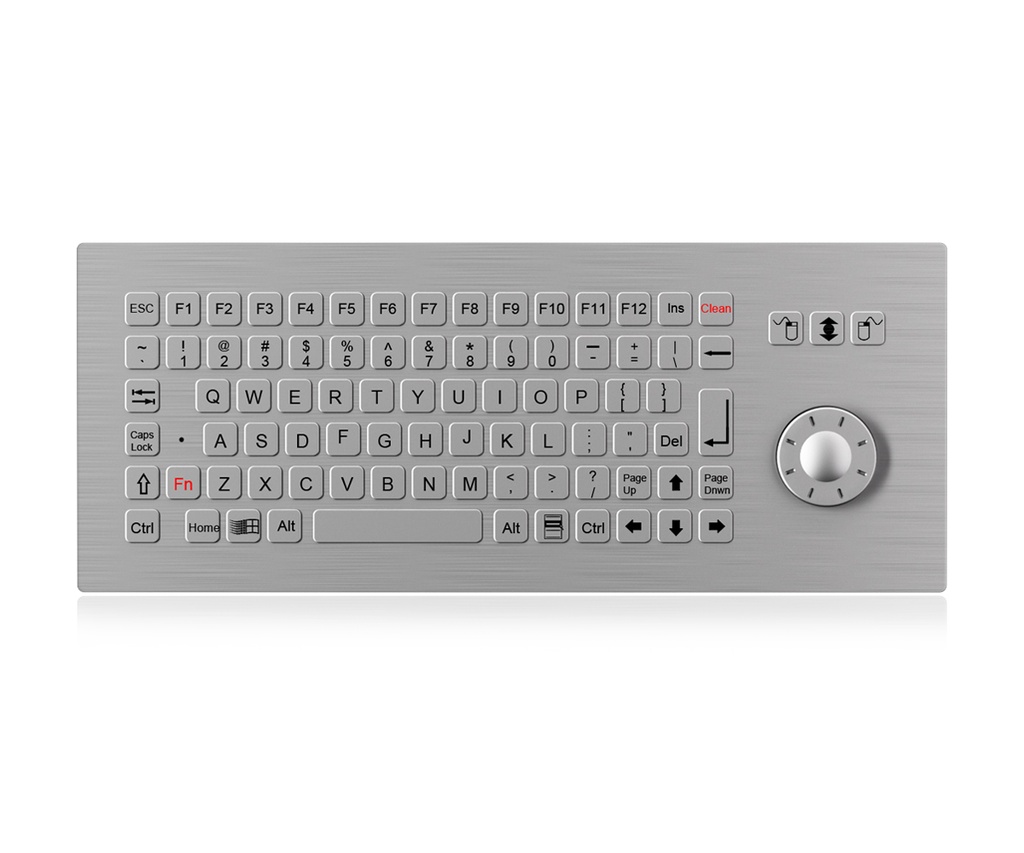

DESCRIPTION: 86 keys compact format IP65 dynamic waterproof, oil proof, dust proof stainless steel industrial keyboard with sealed & ruggedized tough and durable Force Sensitive Resistor hula pointer on right side for fast and accurate cursor position, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology with 0.45mm short stroke with good tactile feeling for stable and accurate data input, all the keys are flat without raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, front panel mounted solution with threaded bolts. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. DHP durable hular pointer (FSR-Force Sensitive Resistor) features deep waterproof performance and wide temperature resistance. Its core advantage lies in smooth operation while wearing any type of gloves with bare-hand contact unnecessary. It is highly suitable for extreme working conditions, special operations and harsh application scenarios where bare-hand operation is prohibited.
DIMENSION: 361.0mm x 145.0mm (L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 86keys (including3mouse buttons) |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x70.0mm for space bar |
| Key travel | 0.45±0.05mm |
| Actuation Force | 3.5N±0.2Nfor key 14.0mm x 14.0mm (pressure point )7.0N±0.4Nfor key 14.0mm x 28.0mm (pressure point) |
| G.W. | ≈2.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Metal DomeGold-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65dynamic |
| Vandal resistant | IK09 |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil andgas etc. |
