Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

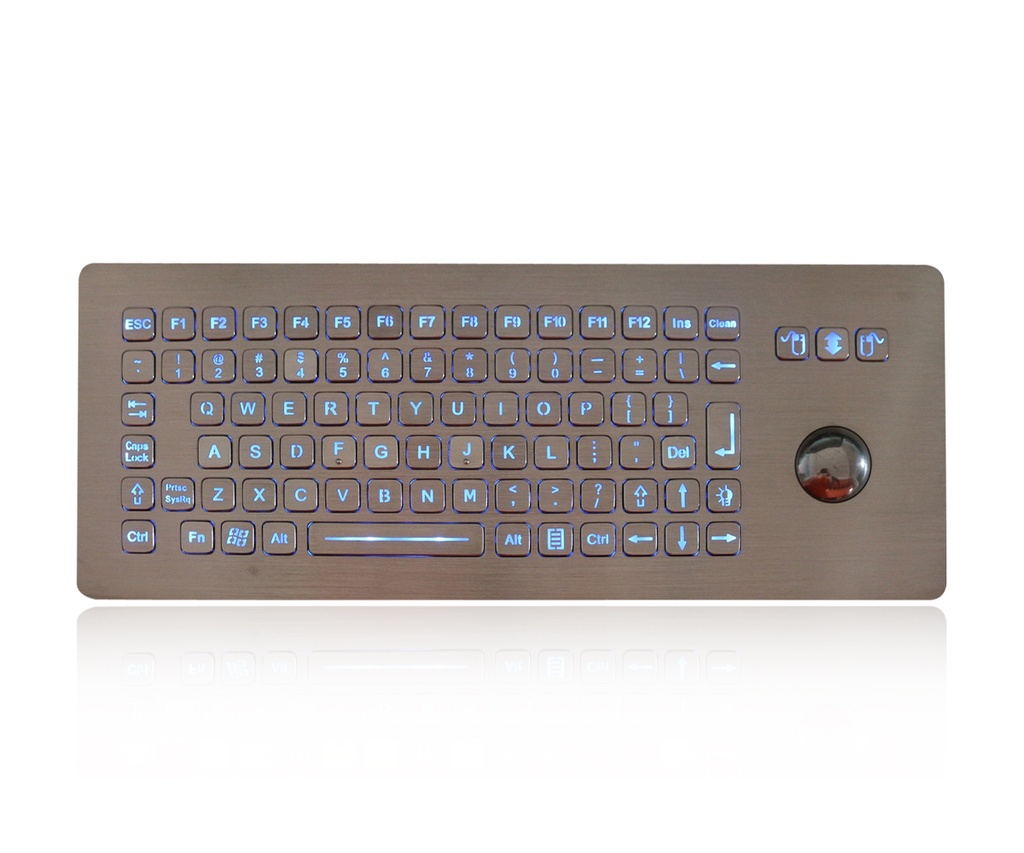

DESCRIPTION: 86 Keys Compact Format IP65 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with IP68 dynamic water proof
trackball for fast and accurate cursor position, industrial metal PCB with gold-on-gold key switch technology with short stroke(0.45±0.05mm)with
extremely good tactile feeling for stable and accurate input without any noise, one complete silicone rubber along the underneath of stainless steel top
plate for easy mounting & sealing tightly with cabinet, 3 mouse buttons designed for right & left clicking, function keys F1, F2..F10, F11, F12 are on the
top panel for easy operation, stainless steel top plate with threaded bolts for top panel mounting solution Stainless steel key caps etched out via special
professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included. (Blue, Red, White colors etc. optional).
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain
pipe is optional, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 361.0mm x 145.0mm (front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 86keys(including 3 mouse buttons) |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x73.0mm for space bar |
| Key travel | 0.45±0.05mm |
| Actuation Force | 3.5N±0.2Nfor key 14.0mm x 14.0mm (pressure point ),7.0N±0.4Nfor key 14.0mm x 28.0mm(pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 1.5mm thickness super quality brushed stainless steel |
| Switch life | more than1million of operations |
| Tracker ball | 38.0mm stainless steel opticaltrackball module, silver resin ball module optional |
| G.W. | 1.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | +5V DC ±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access,explosion-proof automation, oil and gas etc. |
