/ 01
78keys
Number of keys
/ 02
metal dome PCB with gold-on-gold key switch technology with short stroke keys
Key switch Technology
/ 03
3.5N±0.2N(press point)
Actuation Force
/ 04
0.45±0.05mm
Key Travel
Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

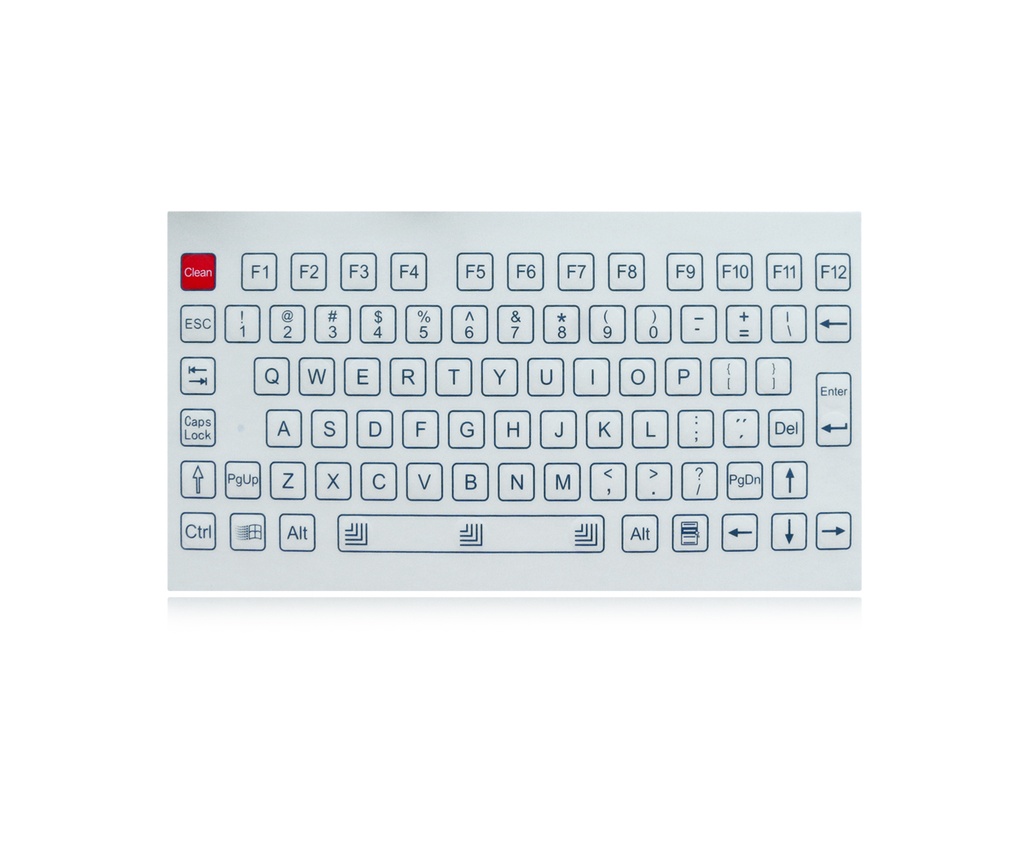

DESCRIPTION: 78 keys IP65 dynamic compact format industrial membrane keyboard with integrated function keys on the upper line for easy operation,
industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable
data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted
extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments,
brushed aluminum or stainless steel back plate optional, with threaded bolts for top panel mounted solution.
DIMENSIONS: 200mm x 105.0mm (top panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Number of keys | 78keys |
| Key switch Technology | metal dome PCB with gold-on-gold key switch technology with short stroke keys |
| Actuation Force | 3.5N±0.2N(press point) |
| Key Travel | 0.45±0.05mm |
| Mounting Type | Top panel mounting |
| Colors | 2(white, black) |
| G.W. | 0.40KGs |
| Switch life | more than1million of operations |
| Key Dimensions (print area) | 10.0mm x 10.0mm |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numericalcontrol machine etc. |
