Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

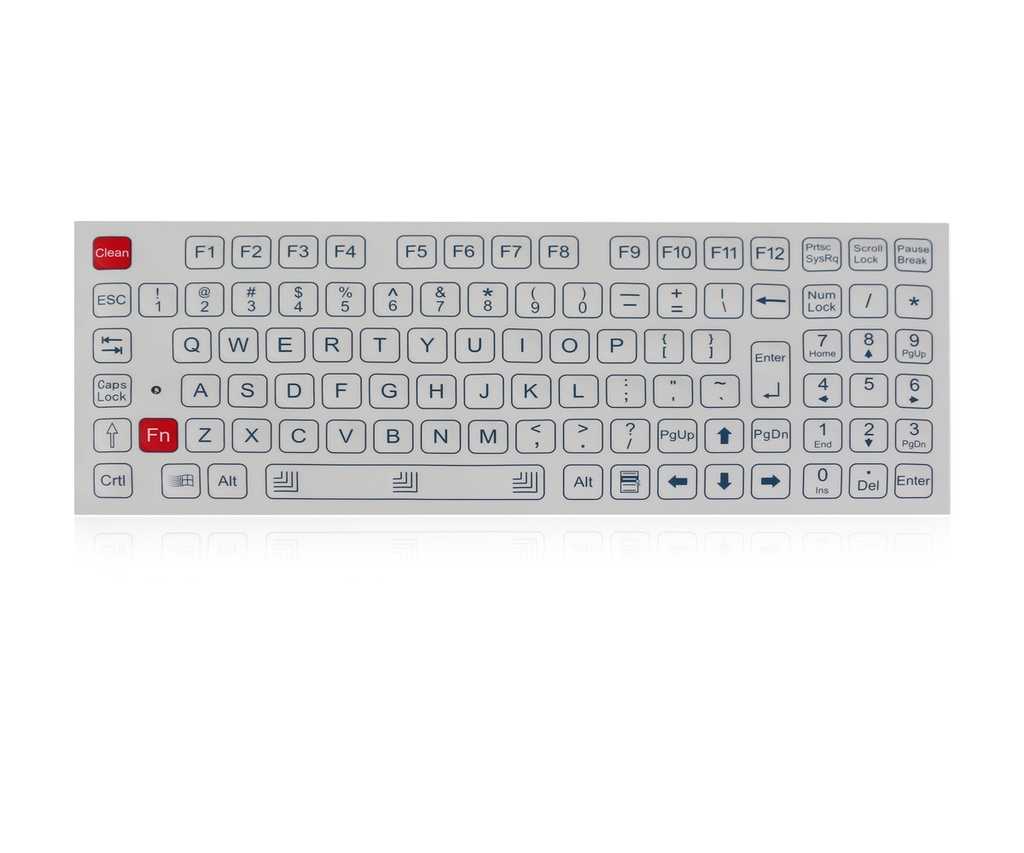

DESCRIPTION: 97 keys compact format IP65 dynamic membrane industrial keyboard with integrated numeric keypad, function keys (F1, F2...F11, F12) on the upper line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, FN+CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized brushed stainless steel back plate with shielding box to protect the whole electronics, with threaded bolts for top panel mounted solution.
DIMENSIONS: 320.0mm x 125.0mm (top panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Number of keys | 97keys |
| Key switch Technology | metal dome PCB with gold-on-goldkey switch technology with short stroke keys |
| Actuation Force | 3.5N±0.2N(press point) |
| Key Travel | 0.45±0.05mm |
| Mounting Type | Top panel mounting |
| Colors | 2(white, black) |
| G.W. | 1.30KGs |
| Switch life | more than1million of operations |
| Key Dimensions (print area) | 14.0mm x 14.0mm |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
