Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

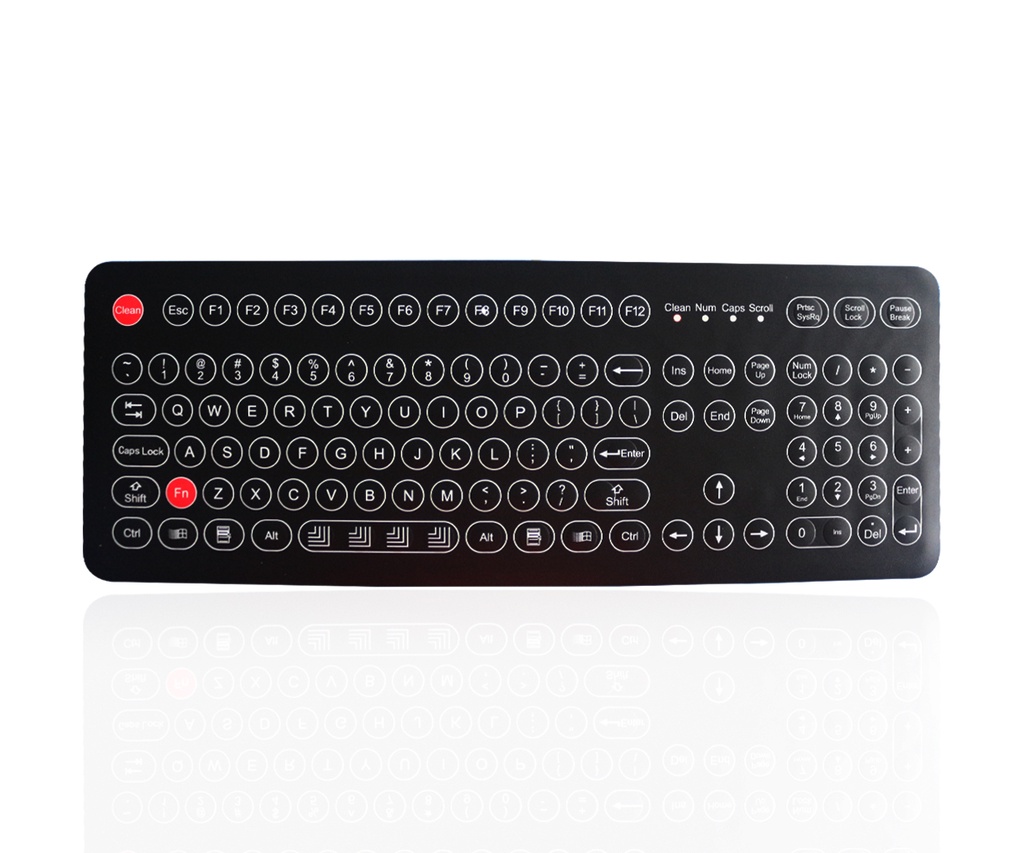

DESCRIPTION: 107 keys compact format IP68 dynamic rated washable membrane industrial keyboard with integrated numeric keypad and
function keys FN (F1,F2 F3 ... F11, F12) on the upper line, industrial metal dome PCB with gold-on-gold key switch technology
with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with CLEAN key for easy cleaning via lock/disable the entire
keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester
withstand to most chemicals and liquids under the harshest environments, mountable desk top version with robust polycarbonate case and VESA
mounting holes on backside for fixation.
DIMENSIONS: 399.0mm x 148.8mm x (22.1-36.8)mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Number of Keys | 107keys |
| Key switch Technology | metal dome PCB with gold-on-gold key switch technology with short stroke keys |
| Actuation Force | 3.5N±0.2N (press point) |
| Key Travel | 0.45mm |
| Key switch Lifetime | 1mil. operations |
| Mounting Type | Mountable desktop version |
| Colors | 2(white, black) |
| G.W. | 1.40KGs |
| Key Dimensions (print area) | 13.0mm x 13.0mm |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numericalcontrol machine etc. |
