Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

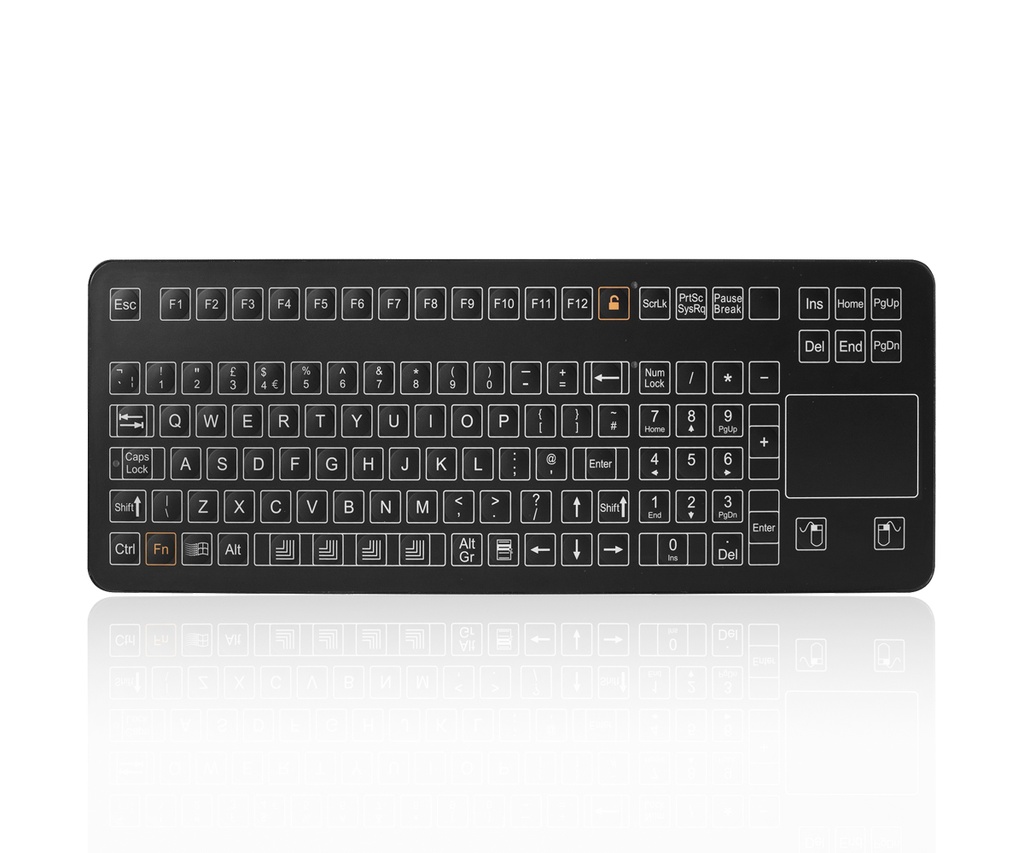

DESCRIPTION: 108 keys compact format IP68 rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad
and function keys on the upper line, integrated with sealed and ruggedized tough touchpad for fast and accurate cursor position, totally sealed and
ruggedized industrial PCB with super quality OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data
input, with red FN + Lock combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface
mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester
withstand to most chemicals and liquids under the harshest environments, VESA mountable desk top version with robust ABS polycarbonate case.
DIMENSIONS: 399.0mm x 148.8mm x (20.0mm - 37.9mm) (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Number of Keys | 108keys(including 2 mouse buttons) |
| Key switch Technology | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
| Actuation Force | 2.0N±0.2N (press point) |
| Key Travel | 0.45±0.05mm |
| Key switch Lifetime | 1mil. operations |
| Mounting Type | Mountable desktop solution |
| Colors | Black |
| G.W. | 1.50KGs |
| Key Dimensions (print area) | 14.0mm x 14.0mm |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Method | capacitive |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | <10mA |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical,numerical control machine etc. |
