Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

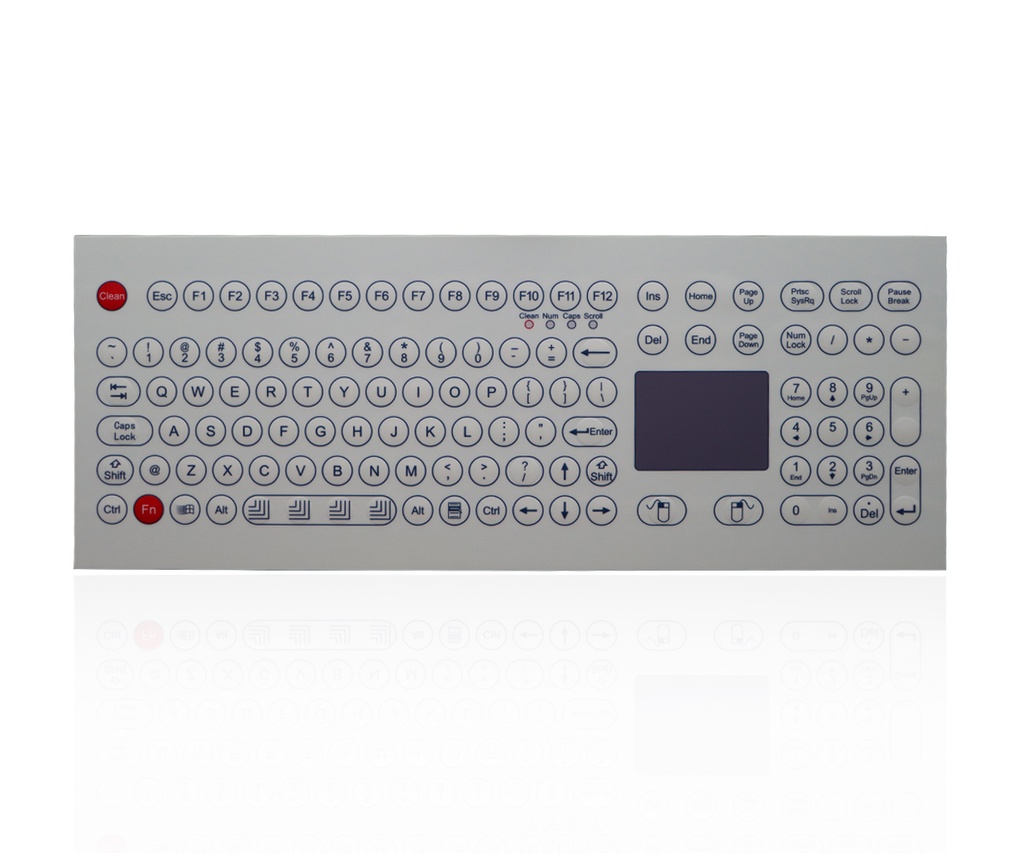

DESCRIPTION: 108 keys IP65 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN+Clean” key combination for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized brushed aluminum back plate with mounting studs for top panel mount solution.
DIMENSIONS: 410.0mm x 160.0mm (top panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Number of Keys | 108keys(including 2 mouse buttons) |
| Key switch Technology | metal dome PCB with gold-on-gold key switch technology with short stroke keys(Omron micro key switch technology optional) |
| Actuation Force | 3.5N±0.2N (press point) |
| Key Travel | 0.45mm |
| Key switch Lifetime | 1mil. operations |
| Mounting Type | Top panel mounting. |
| Colors | 3(white, black, grey) |
| G.W. | 1.30KGs |
| Key Dimensions (print area) | 13.0mm x 13.0mm |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Method | capacitive |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | <10mA |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP65dynamic |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical,numerical control machine etc. |
