Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

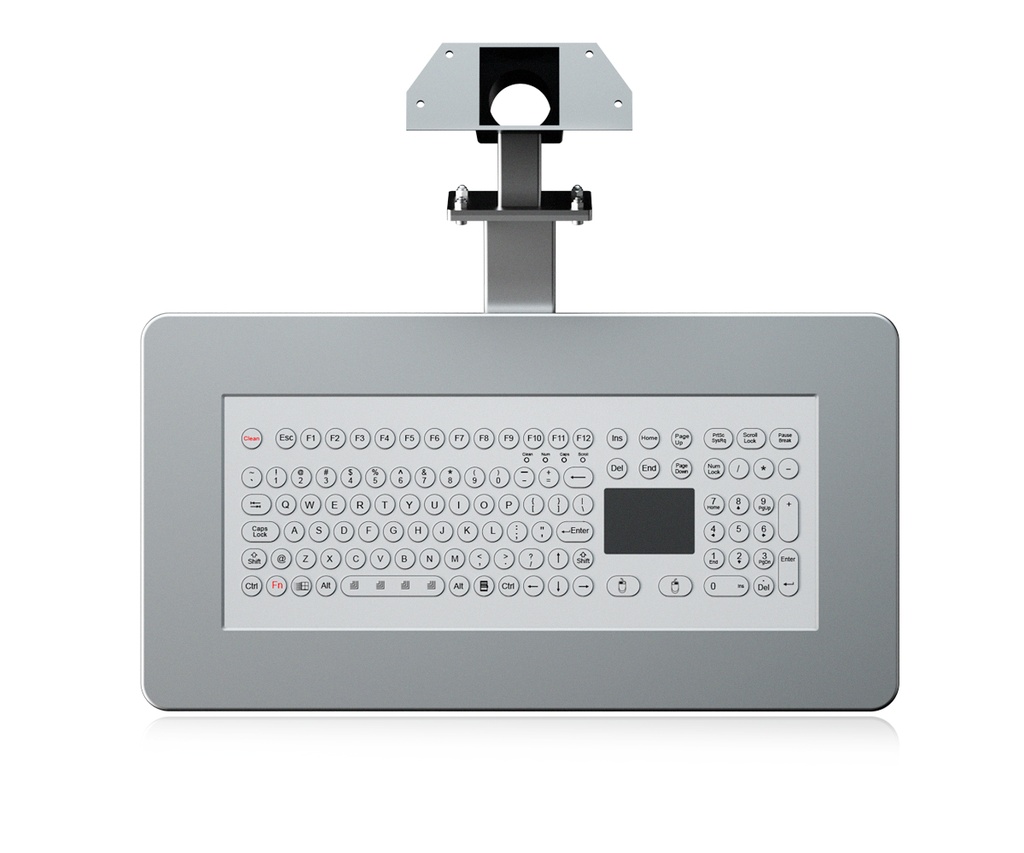

DESCRIPTION: 108 keys (including 2 mouse buttons) IP68 dynamic rated industrial membrane keyboard with full keyboard functionalities, with sealed & ruggedized tough touchpad for fast and accurate cursor position, integrated numeric keypad and 12 FN keys (F1, F2...F11, F12), industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN + Clean combination key for easy cleaning without disconnecting the keyboard and computer, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, black keyboard color optional. Super thin fixed-mount desk top version with aluminum housing with sand blasting & oxygenation surface treatment.
DIMENSIONS: 527.00mm x 277.00mm (L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Number of Keys | 108keys(including 2 mouse buttons) |
| Key switch Technology | metal dome PCB with gold-on-gold key switch technology with short stroke keys(Omron micro key switch technology optional) |
| Actuation Force | 3.5N±0.2N (press point) |
| Key Travel | 0.45mm± 0.05mm |
| Key switch Lifetime | 1mil. operations |
| Mounting Type | Fixed-mount desk top version |
| Colors | 2(white, grey) |
| G.W. | ≈3.0KGs |
| Key Dimensions (print area) | 13.0mm x 13.0mm |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Method | capacitive |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | <17mA |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 dynamic |
| Key Lifespan | >1million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
