Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

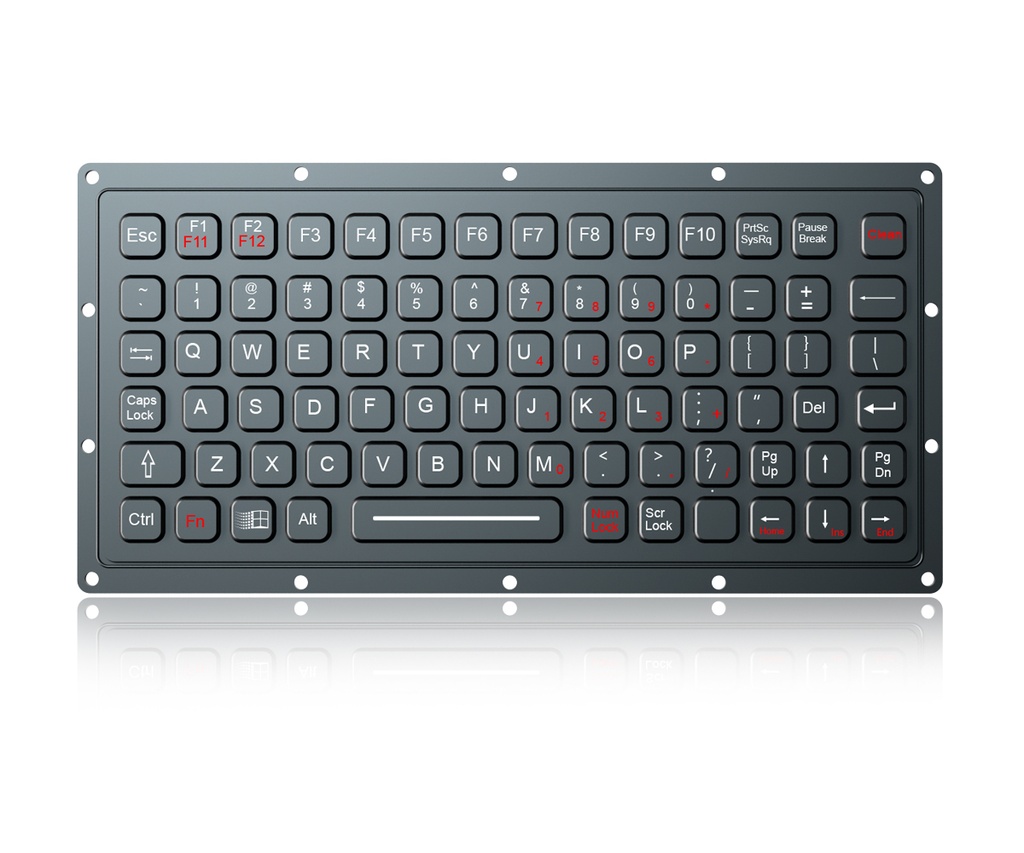

DESCRIPTION: 81 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard with industrial PCB included, 10 function keys on top
line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast
and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh
environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC,
rear panel mounted version, adjustable backlight optional, Military Level with wide temperature, which can be with optional touchpad mouse
AW-M90TP-ML or AW-M90TP-IL to work as combo set. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity,
vibration, shock, temperature shock, drop, rain, salt mist, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the
critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability,
compatibility, consistency, and continuity.
DIMENSIONS : 222.0mm x 100mm (L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 81keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 10.2mm X 10.2mm for normal keys |
| Key travel | 1.50mm±0.1mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| G.W. | 0.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified.MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock,temperature shock, drop, rain, salt mist, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
