Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

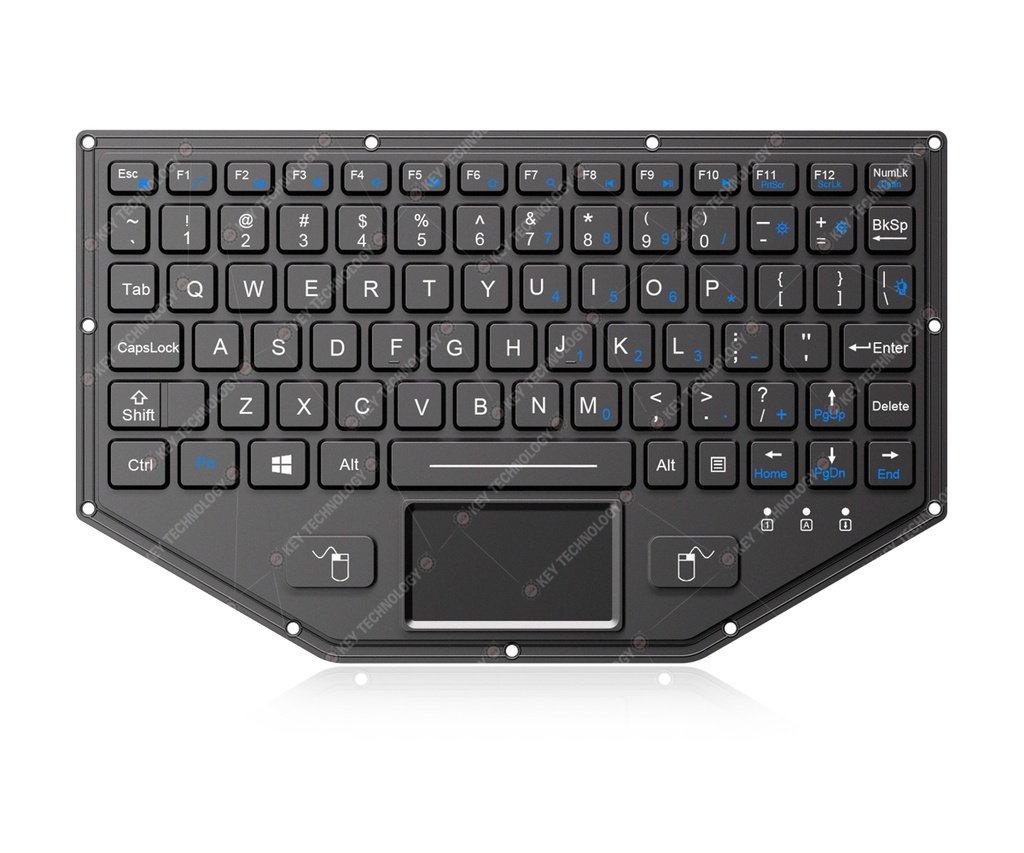

DESCRIPTION: 80 keys IP67 dynamic fully sealed and durable embedded silicone rubber rugged keyboard with integrated tough touchpad with 400 DPI resolution for fast cursor position, with built-in military grade PCB, and 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.30±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, with super thin ruggedized aluminum back plate with mounting holes for rear panel mounting, adjustable white backlight included. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, sand and dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS : 232.0mm x 137.0mm (L x W)
Specifications
Dimensions: :
| MECHANICAL DATA | |
|---|---|
| Keys | 80keys (including 2 mouse buttons) |
| KeySwitch | Carbon-on-gold key switch |
| Key Size | 12.50mm*12.50mm for normal keys |
| KeyTravel | 1.30mm±0.10mm |
| Actuation Force | 1.50N±0.20N (pressure point) |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mAwhen backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810H(high and low wideworkingtemperature, low pressure, humidity, vibration, shock, temperature shock,drop,rain, salt mist,sand anddust,fungus, solar radiation etc.) | |
| Lifespan | > 5 years |
| Switch Contact Material | military PCB with carbon-on-gold key switch technology |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H(high and low wideworking temperature, low pressure, humidity,vibration, shock, | |
| temperature shock, drop, rain, salt mist,sand anddust, fungus, solar radiation etc.) | |
| Protection Level | IP67(front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
