Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

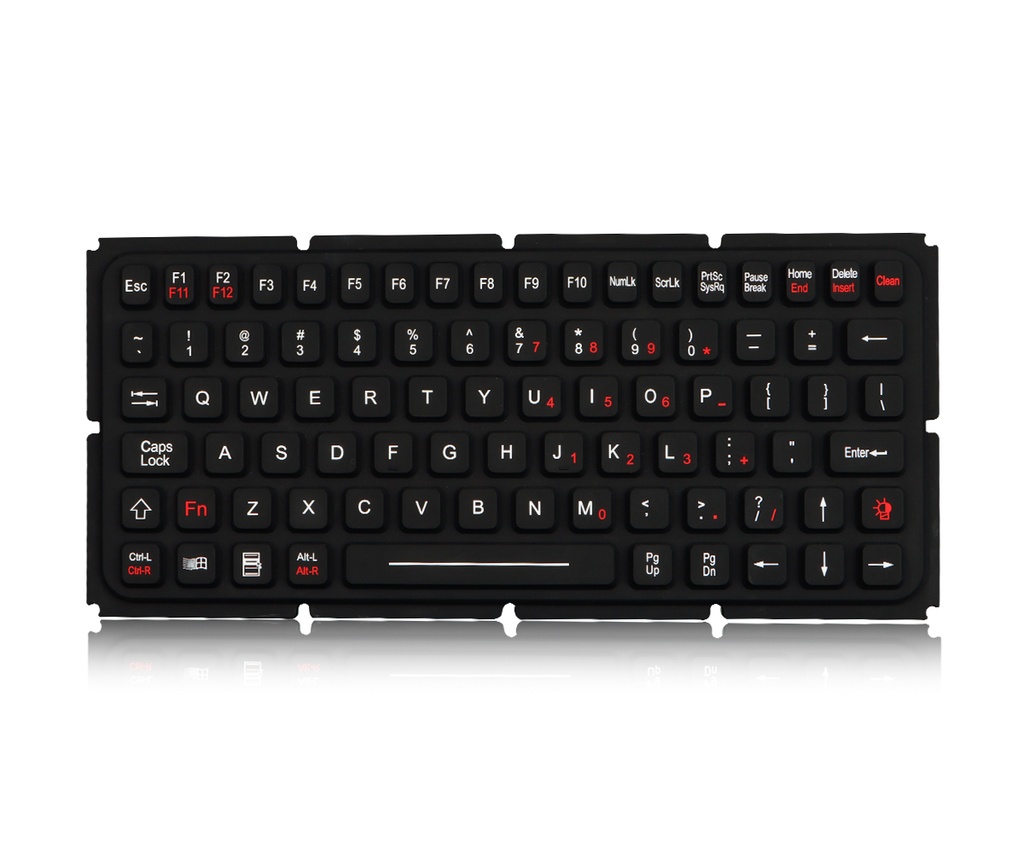

DESCRIPTION: 83 keys IP65 dynamic sealed & ruggedized silicone rubber military keyboard with military electronics PCB included, 12 function keys
on top line for easy operation, military PCB with carbon-on gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling
for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids
under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard
from PC, panel mounted version, adjustable backlight included.Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity,
vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the
critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility,
consistency, and continuity.
DIMENSIONS : 277.0mm x 119.0mm(L x W )
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 83keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key and 82.0mm x 12.5mm for space bar key |
| Key travel | 1.50mm±0.1mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| G.W. | 0.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mAwhen backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified,MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperatue shock, rain,salt mist, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
