Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

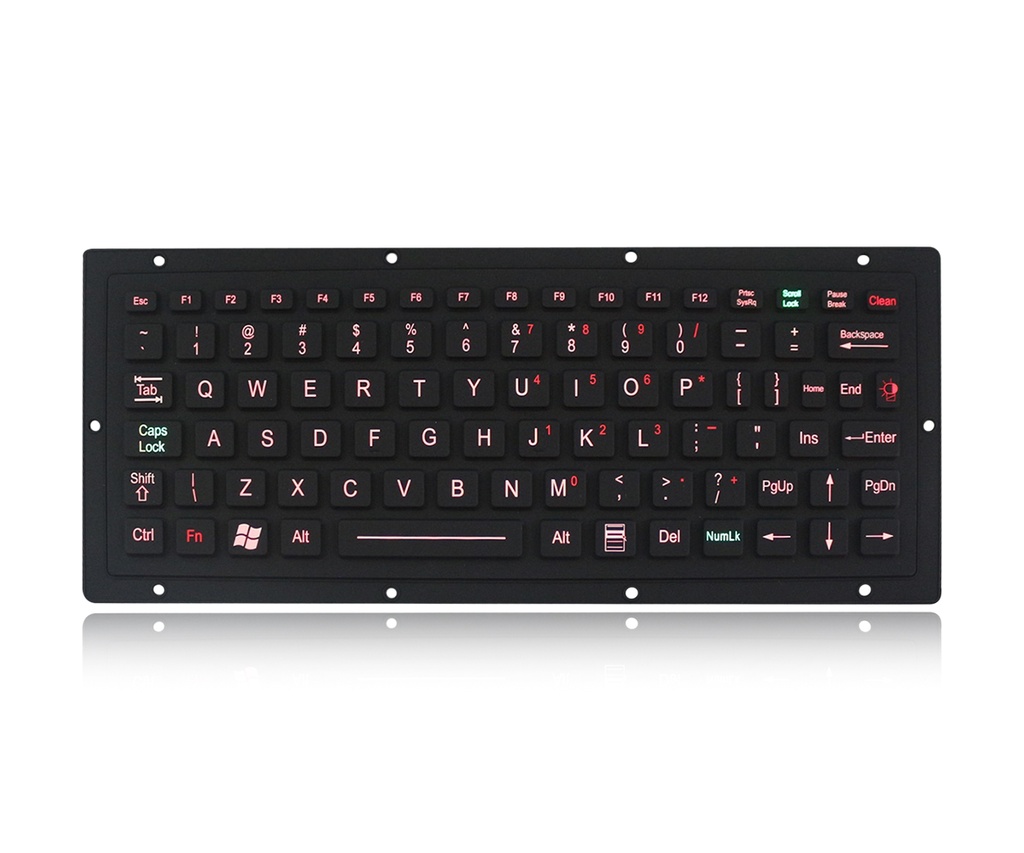

DESCRIPTION: 88 keys compact format ultra thin IP65 dynamic sealed & ruggedized silicone rubber military keyboard with carbon-on-gold PCB
electronics controller module included, 12 function keys (F1, F2...F12) on top line for easy operation, carbon-on-gold key switch with stroke (1.20mm)
with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand
to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing
to take away the keyboard from PC, panel mounted version, military level with adjustable red backlight included. With optional stainless steel back plate
sealed and ruggedized with top silicone cover & gold finished PCB for ruggedized structure and easy mounting and sealing, stainless steel housing
protects the electronics controller. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock,
rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects:
reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS : 275.0mm x 104.0mm (Front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 88keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 13.5mm X 12.4mm for normal keys, 20.3mm x 12.4mm for enter key and 60.8mm x 12.4mm for spacebar key |
| Key travel | 1.20mm |
| Actuation Force | 1.2N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| G.W. | 0.60KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mAwhen backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV groundstation etc. |
