Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

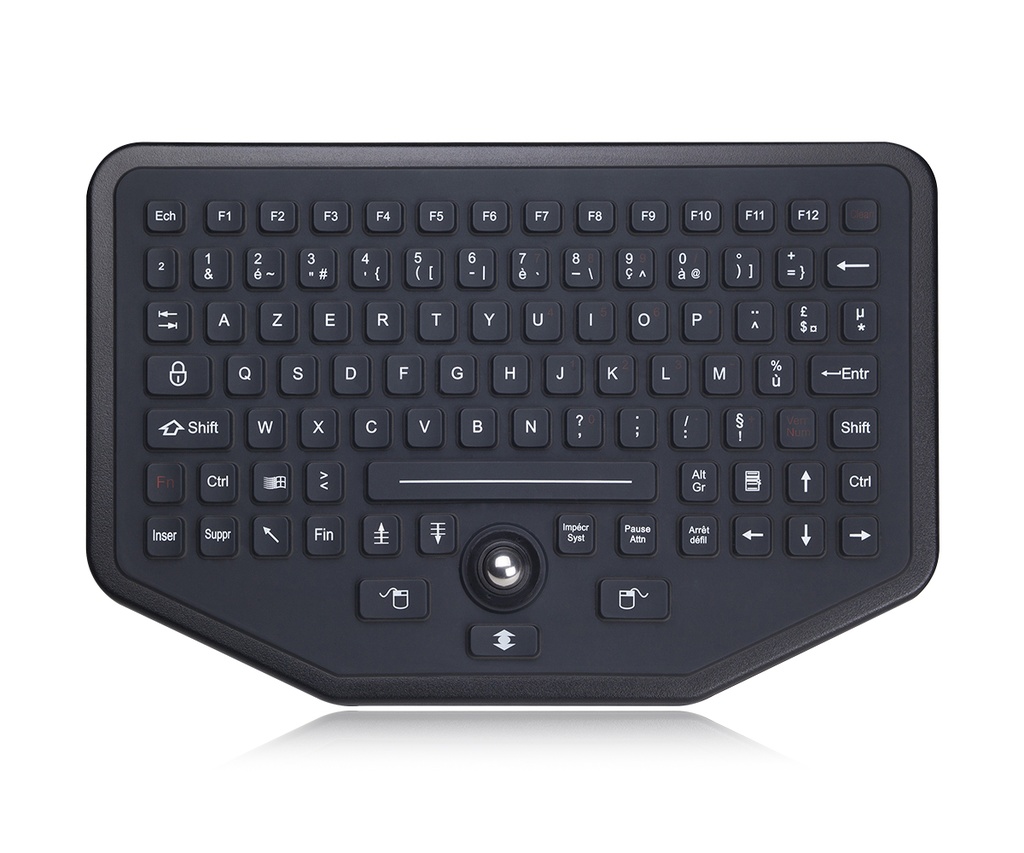

DESCRIPTION: 92 keys IP68 dynamic washable sealed & ruggedized silicone rubber industrial keyboard with full keyboard functionalities with IP68
dynamic washable 16.0mm optical trackball module with 800 DPI for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on the top
line for easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling
for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under
harsh environment, FN + CLEAN key for easy cleaning, adjustable industrial backlight optional. Mountable desk top version with robust polycarbonate
case, military level. Industrial level optional.
DIMENSIONS : 304.40mm x 195.80mm x (22.34mm-47.33mm) (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 92keys(including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Tracker ball | 16mm diameter |
| More than Lifetime 10 million strokes | |
| Key Size | 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| G.W. | 1.20KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 100mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30~90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Shock | 3x11 ms pulses of 50g on each of 3 axes |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours |
| RELIABILITY | |
| RoHS, CE,FCC | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, UAV ground station etc. |
