/ 01
92keys(including 3 mouse buttons)
Keys
/ 02
Protuberant rectangular keys with tactile feeling
Key top style
/ 03
16mm diameter
Tracker ball
/ 04
12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
Key Size
Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

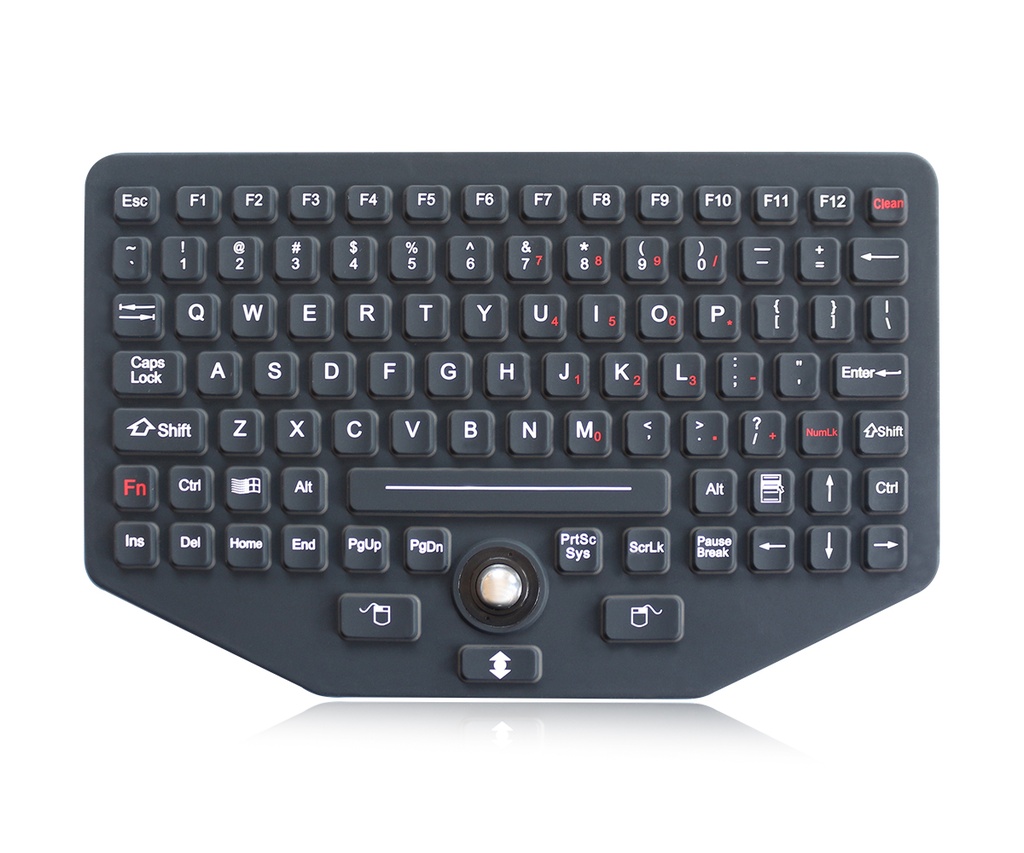

DESCRIPTION: 92 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard with full keyboard functionalities with IP68 dynamic
washable 16.0mm optical trackball module with 800 DPI for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on the top line for
easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast
and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh
environment, CLEAN key for easy cleaning, top panel mounting.
DIMENSIONS : 283.0mm x 177.7mm (front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 92keys(including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Tracker ball | 16mm diameter |
| More than Lifetime 10 million strokes | |
| Key Size | 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| G.W. | 1.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 100mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30~90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE,FCC | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console,UAV ground station etc. |
