Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

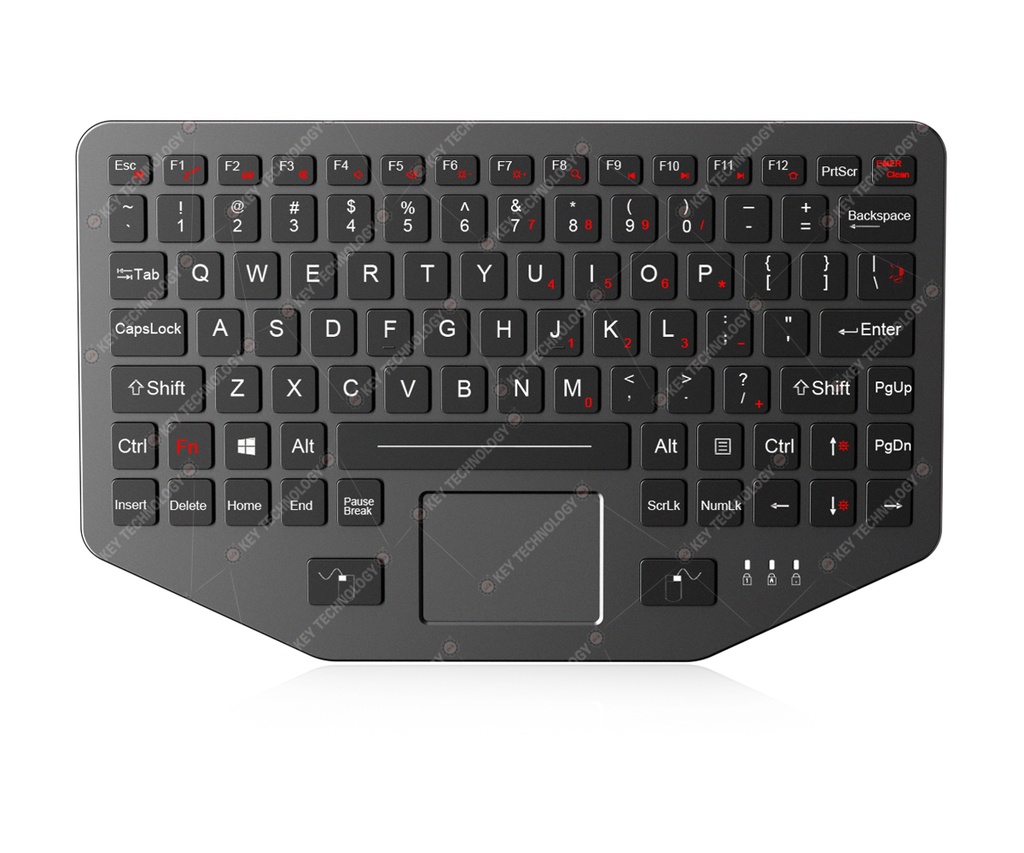

DESCRIPTION: 91 keys IP65 dynamic waterproof sealed and rugged durable embedded wide temperature chiclet keyboard with polymer keys and integrated touchpad, with built-in military PCB. 12 function keys(F1, F2, ... F12) on the top line. Which is made of CNC aluminum alloy front plate + PC key caps + carbon-on-gold key switch technology PCB, with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise. One complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, top panel mount solution. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, salt mist etc. Adjustable white backlight included. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimensions: 285.00mm x 179.69mm (L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 91 keys (including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends are available |
| Key technology | Carbon-on-gold key switch technology |
| Key size | 14.2mm x 10.0mm forFNkeys,25.0mm x15.8mm forEnter keys,15.8mm x 15.0mm fornormalkeys. |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 1.0N±0.2Nfor normal keysand 1.5N±0.2Nfor Enter/Backspace/Shift/Caps lock/Tab etc. keys |
| Switch life | more than5million of operations. |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | <10mA |
| G.W. | ≈1.5kgs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mAwhen backlight is off, 300mA with backlight on |
| Lifespan | > 5 years |
| Interface | USB/PS2 optional |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified, and MIL-STD-810H(high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock,rain, salt mist, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65dynamic(front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
