Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

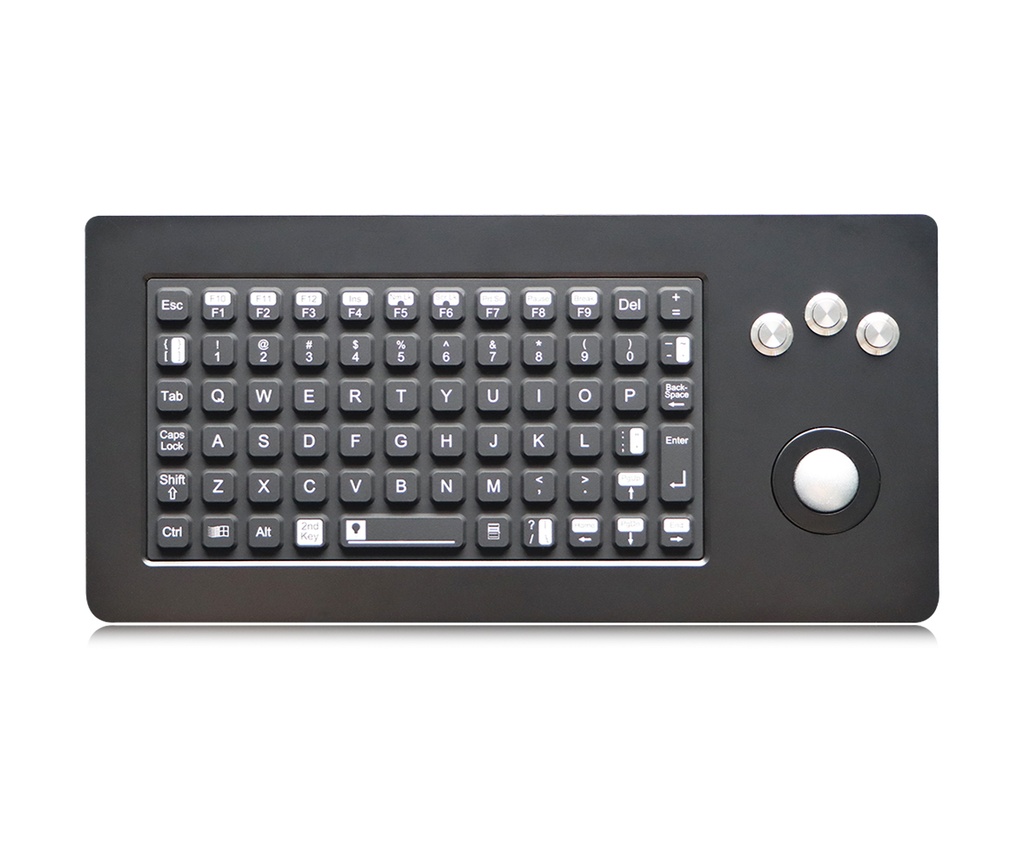

DESCRIPTION: 72 keys IP65 dynamic sealed & ruggedized silicone rubber keyboard, integrated with a IP68 washable 25mm silver resin optical trackball(stainless steel ball optional) with +800DPI resolution for fast cursor moving and 3 mouse buttons for right/left clicking as well as middle key for scrolling up and down with ball rolling. F1,...F10 are on top line for easy operation, F11 and F12 shall be operated with 2nd Key as second key values, industrial PCB with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment to withstand most chemicals and liquids under harsh environment, top panel mounted solution with threaded bolts, with black titanium electroplated front stainless steel plate to be scratch proof and withstand salt spray, working temperature of -40℃ to +75℃. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 280.0mm x 135.0mm (Front Panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 69keys+ 3mousebuttons |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 10.2mmx10.2mm for normal keys,10.2mm x 25.2mm for enter key, 10.2mm x 40.2mm for space bar key |
| Key travel | 1.50mm±0.1mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| G.W. | 1.2KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 100mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | carbon-on-gold key switch technology |
| Interface | PS2, USB |
| Cable length | Standard 2.0m, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.). | |
| Protection Level | IP65dynamic(front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
