Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

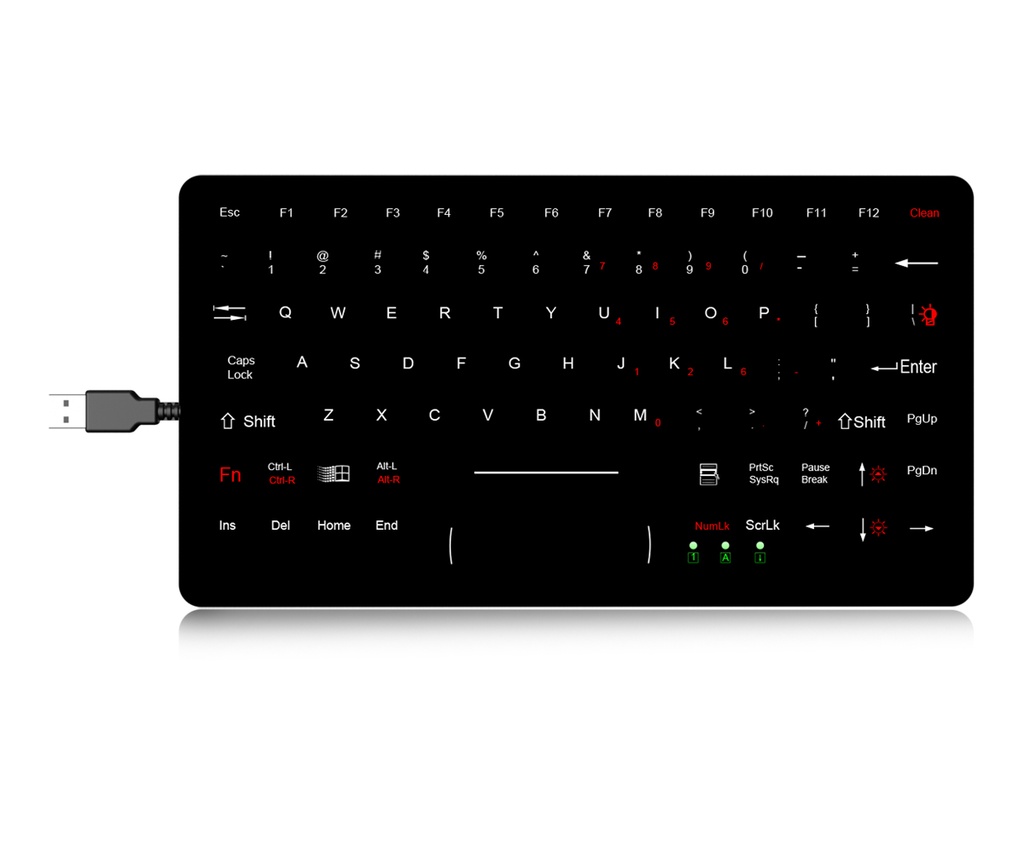

DESCRIPTION: 90 keys IP65 dynamic sealed and durable embedded silicone rubber military keyboard with a Force Sensing Resistor
pointing device for fast and accurate cursor position, with built in military grade PCB, 12 FN keys (F1, F2...F11, F12) are on
top line for easy operation, with carbon on gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling
for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals
and liquids under harsh environment, top panel mountedsolution with aluminum alloy back plate and threaded bolts, white backlight included.
Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL STD -810H (high and low wide temperature, low pressure, humidity,
vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these
10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: 281.0mm x 152.5mm (L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 90 keys (including 3 mouse buttons) |
| Switch Contact Material | Carbon-on-gold key switch technology |
| KeyTopStyle | Protuberant rectangular keys with tactile feeling |
| KeyTravel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| G.W. | 0.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mAwhen backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | |
| Lifespan | > 5 years |
| Interface | USB,PS2 available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified,MIL-STD-461G (EMC, EMI, EMS, ESD) andMIL-STD-810H (high and low wide temperature, low pressure, humidity,vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV groundstationetc. |
