Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

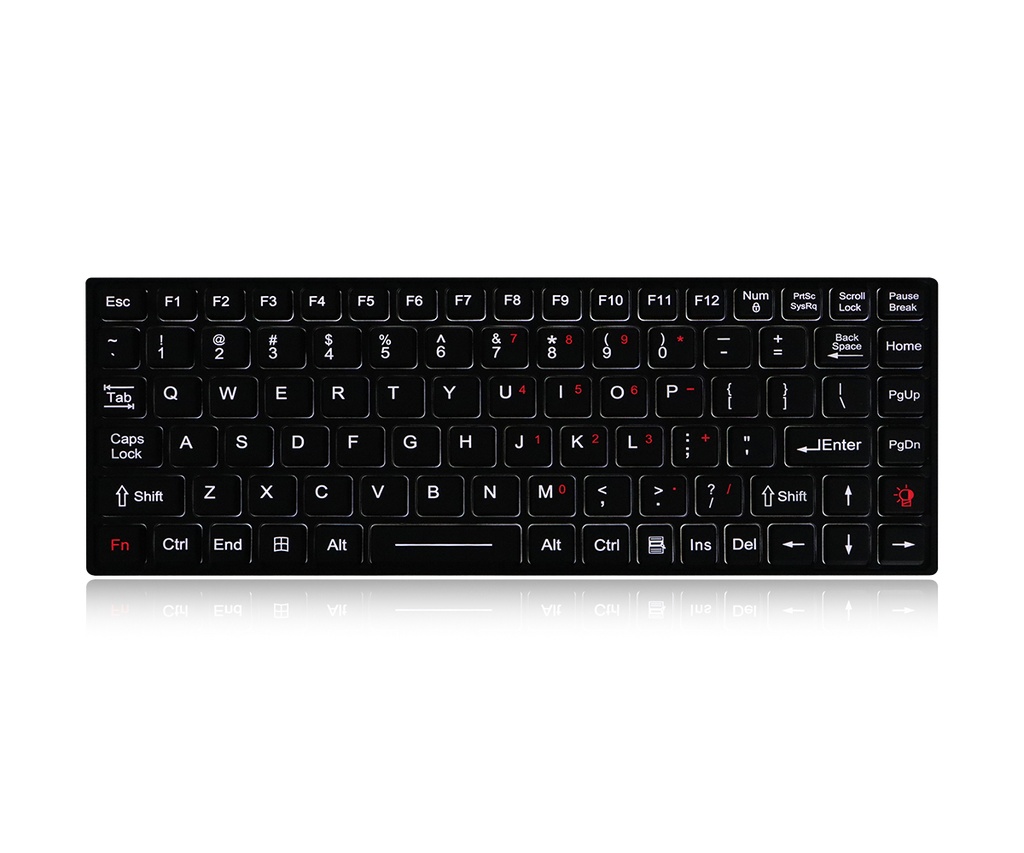

DESCRIPTION: 89 keys IP65 sealed & ruggedized silicone rubber military keyboard, 12 function keys on top line for easy operation, military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast andaccurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquidsunder harsh environment, top panel mount solution, adjustable white/red backlight included, with USB interface. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects:reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS : 284.0mm*109.0mm (L x W )
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 89keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations. |
| G.W. | 0.30KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA (non-backlight) , 300mA (with backlight on) |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD).: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop, rain, dust, salt mist,fungus, solar radiation etc.) | |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with military PCB |
| Interface | USB |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Operating RH | 3%-95% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certifiedMIL-STD-461G (EMC, EMI, EMS, ESD) andMIL-STD-810H (high and low wide temperature,low pressure, humidity, vibration, shock, temperature shock, drop, rain, dust, salt mist, fungus, solar radiation etc.) | |
| Protection Level | IP65 dynamic(front panel) |
| Key Lifespan | >5million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV groundstation etc. |
