Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

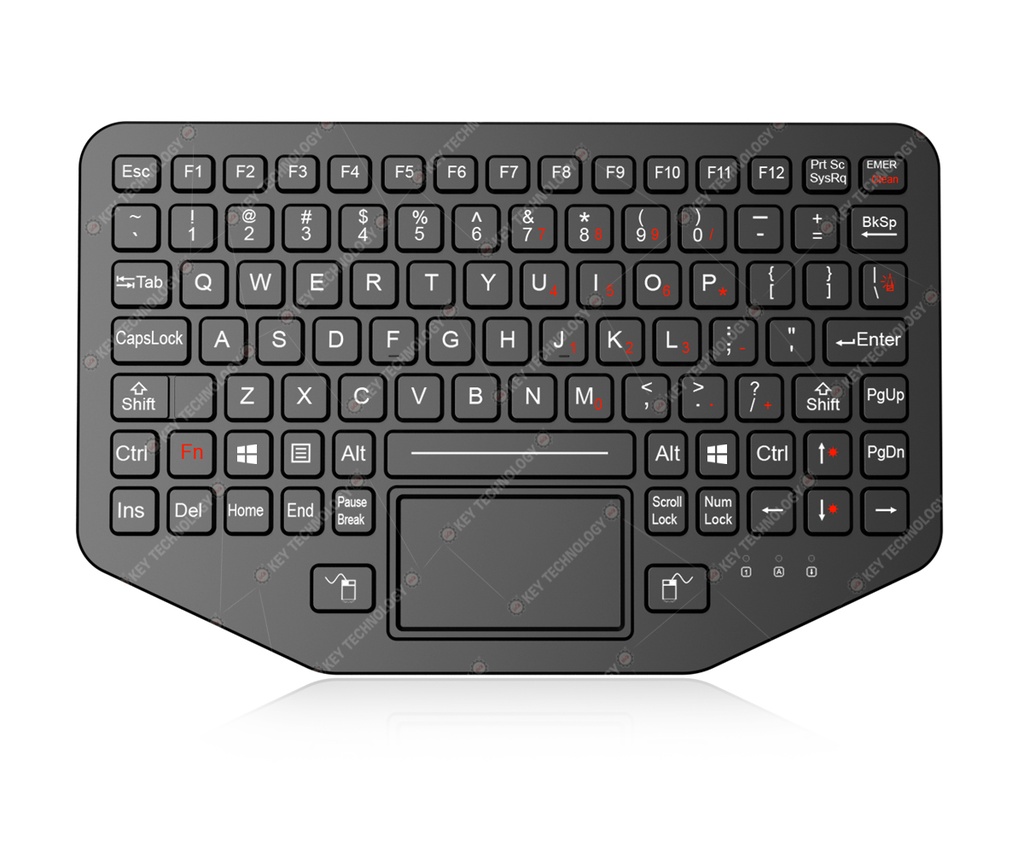

DESCRIPTION: 93 keys IP65 dynamic sealed & durable embedded military silicone rubber keyboard integrated with sealed tough touchpad for fast & accurate cursor position, with built-in military grade PCB module, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, top panel mount solution, adjustable white backlight included, FN + bulb button control keyboard backlight on or off. Designed to meet MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.),and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: 284.8mm x 179.5mm (L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 93keys (including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | <10mA |
| G.W. | 1.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mAwhen backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | carbon-on-gold key switch technology |
| Interface | USB/PS2 |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified,MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock,rain, salt mist, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
