Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

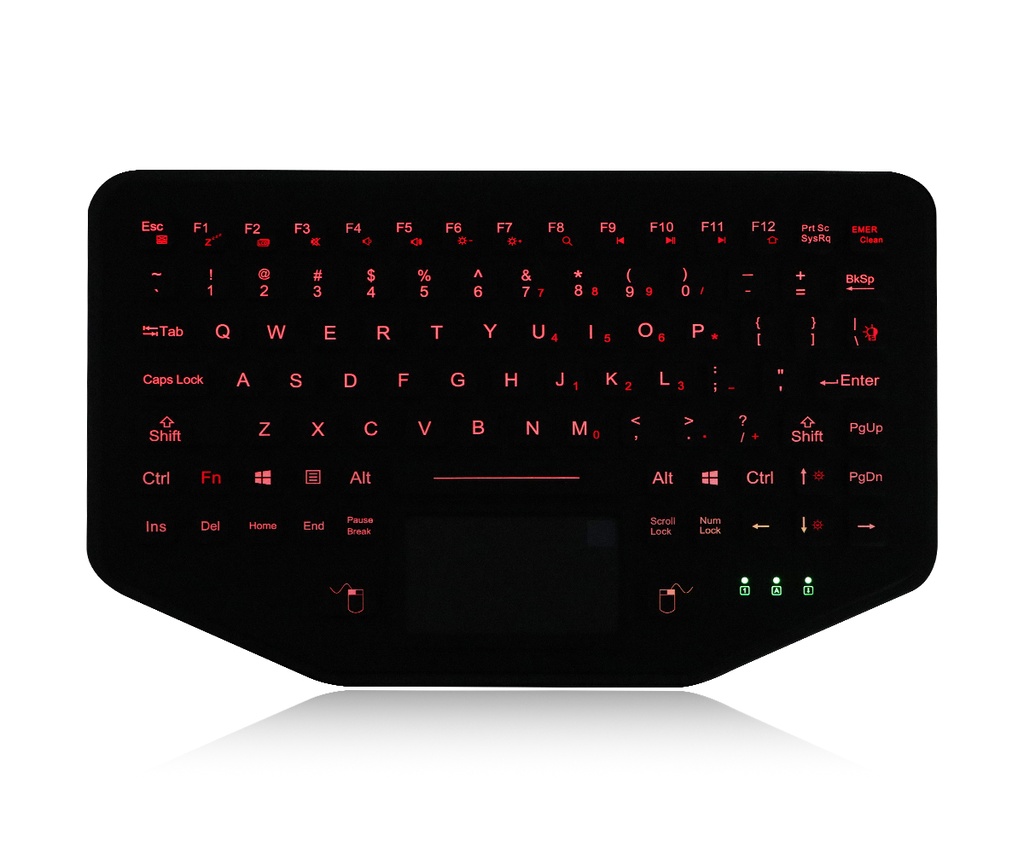

DESCRIPTION: 92 keys IP68 dynamic water proof sealed & ruggedized silicone rubber special professional keyboard with full keyboard functionalities with sealed & rugged tough touchpad (with fingerprint reader function) for fast and accurate cursor position, 12 FN keys (F1, F2...F11,F12) are on the top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, avoid mis-operation during cleaning process, adjustable backlight included, FN + bulb button control keyboard backlight on or off. VESA/AMPS mountable super flat desk top version with robust ABS polycarbonate case. Meet MIL-STD-810F, high and low temperature, wet and hot, vibration, mildew Level 2, salt spray, direct rain, direct sun, dust etc., and MIL-STD-461G are optional.
Dimension: 297.54mm x 192.03mm x 26.40mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 92keys(including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm forspace bar key |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | <10mA |
| G.W. | 0.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mAwhen backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | carbon-on-gold key switch technology |
| Interface | PS2, USB available |
| Cable lengh | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidityetc.) optional | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAVground station etc. |
