Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

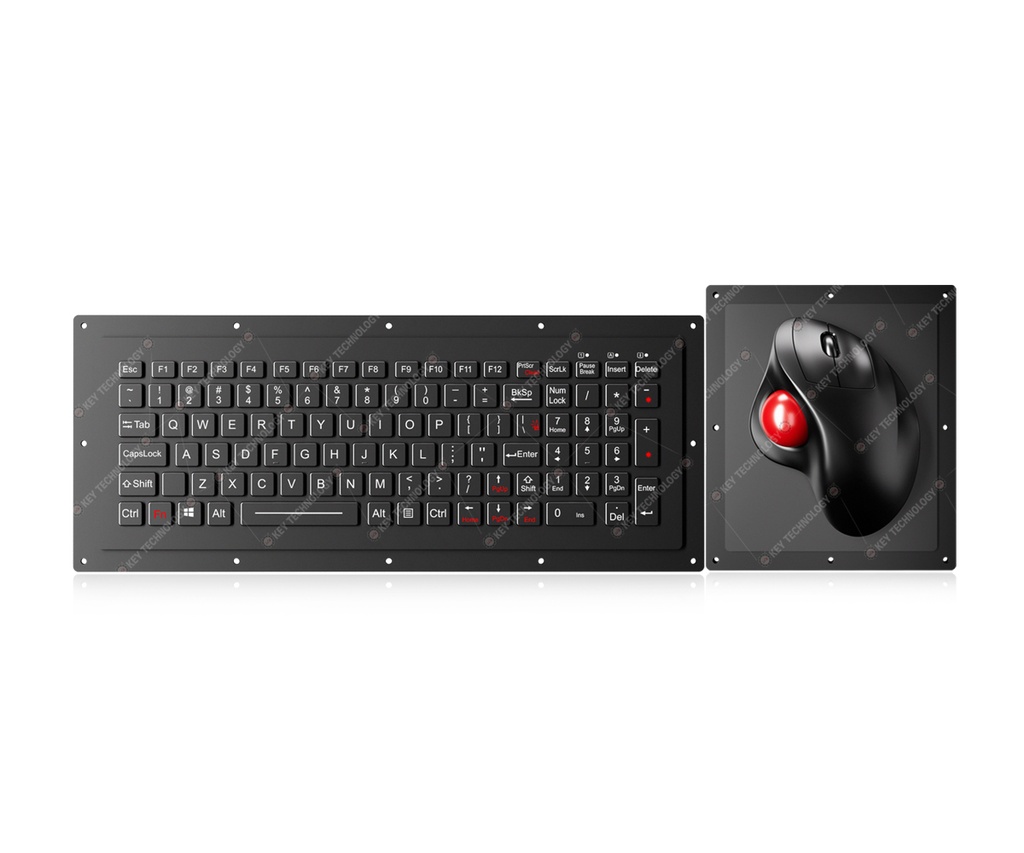

DESCRIPTION: 101 keys IP65 dynamic water proof vandal proof rugged military chiclet keyboard with durable polymer keys and combine with ergonomic 34.0mm optical trackball module with 400~1000 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise. Integrated stepped aluminum alloy panel is processed by CNC. An additional black silicon gasket goes along with the top panel for easy mounting & sealing with cabinet. 12 function keys F1, F2, ... F12 are on top line of keyboard and numerical keypad at the right side of keyboard. Military grade PCB with carbon-on-gold key switch technology with key stroke (1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise. It is made of CNC aluminum alloy front plate + PC keycaps + military grade PCB, High quality durable black titanium spray-paint on the aluminum alloy panel, Rear panel with mounting hole for panel mounting. Adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and prevent misoperation or typo. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.), which is good for outdoor application with direct rain and harsh environments with humidity, much dynamic water, oil, salt mist etc.
Keyboard Dimensions: 338.0mm x 122.0mm (front panel) Mouse Dimension: 129.0mm x 174.0mm(top panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 101keys,durable and robust polymer keys |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 1.0N±0.2Nfor small keys(pressure point )and 1.5N±0.2Nfor middle keys(pressure point ) |
| Switch life | more than5million of operations. |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mAwhen backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810H(high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | |
| Lifespan | > 5 years |
| Switch Contact Material | carbon-on-gold key switch technology. |
| Interface | USB |
| Cable length | Standard1.5M or 2.0M, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified, MIL-STD-461G (EMC, EMI, EMS, ESD) andMIL-STD-810H(high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.) | |
| Protection Level | IP65dynamic(front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
