Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

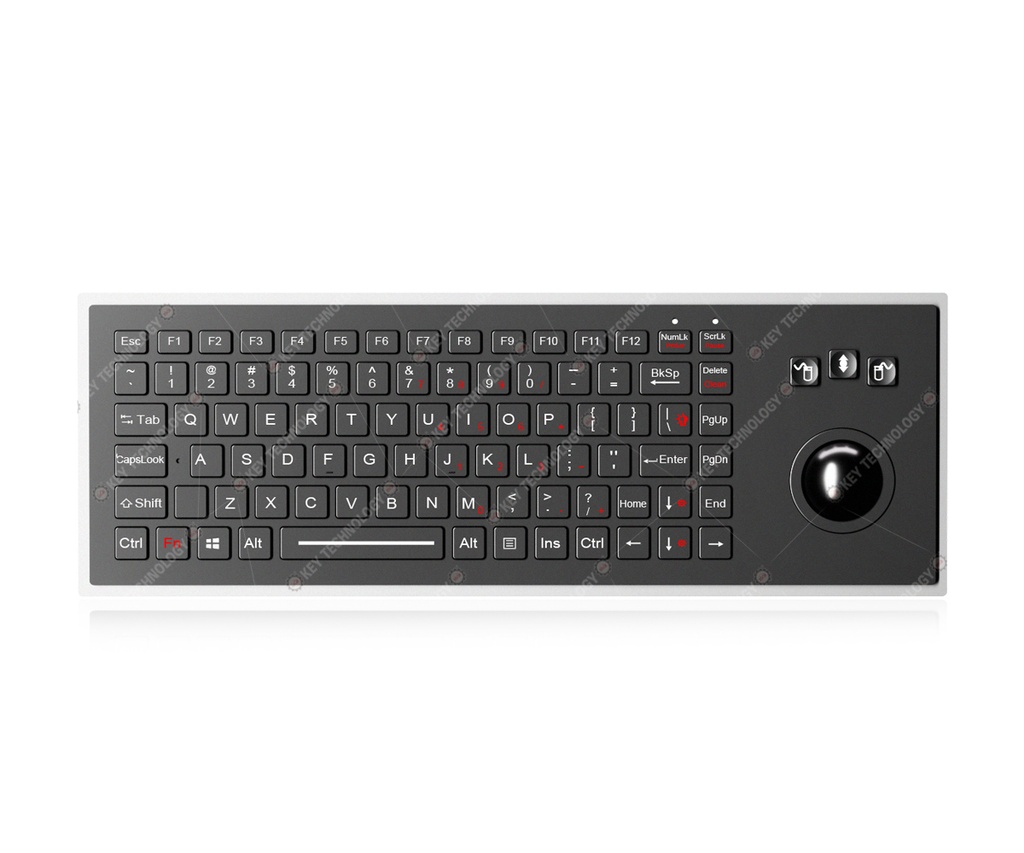

DESCRIPTION: 89 keys(Including 3 mouse buttons) IP65 dynamic sealed and rugged compact chiclet military keyboard with durable polymer keys. With military IP65 static 38.0mm black harden resin mechanical trackball module(stainless steel trackball is optional)in 400DPI resolutions for fast and accurate cursor movement. 12 function keys F1, F2, ... F12 are on the top line of keyboard. It is made of CNC Aluminum Alloy front plate + PC keycaps + military grade PCB, Carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, FN +CLEAN combination keys to lock/disable keyboard for easy cleaning without taking away the keyboard from PC. Adjustable white backlight included. Secure the keyboard to the customer's device using a high-strength adhesive（Top panel with mounting holes or thread bolts are available). Dual USB interface.High quality durable black titanium spray-paint on the aluminum alloy panel. It is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc. The whole keyboard and trackball part can meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration,shock, temperature shock, rain,dust, salt mist, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety,maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity.
Dimensions: 350.0mm x 116.0mm (front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 89keys(Including 3 mouse buttons), durable and robust polymer keys |
| Key travel | 1.20mm±0.10mm |
| Key Size | 13.6mm x 13.6mm for normal keys, 13.6mm x 21.4mm for enter key, 14.0mm x 67.6mm for space bar |
| Actuation Force | 1.0 N±0.2N for key13.6mm x 13.6mm (pressure point ), 1.5 N±0.2N for key 13.6mm x21.4mm (pressure point) |
| Switch life | more than5million of operations. |
| Trackball | IP65 static 38mm mechanical trackball module with 400 DPI resolutions |
| Front Plate | CNC Aluminum Alloy front plate |
| Backlight | White Backlight included |
| G.W. | 2.5KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off) ,300mA (with backlight on) |
| Meet MIL-STD-461G(EMC, EMI, EMS, ESD)etc.: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration,shock, temperature shock, rain,dust, salt mist, fungus, solar radiation etc.) | |
| Lifespan | > 5 years |
| Switch Contact Material | MilitaryPCB withcarbon-on-gold key switch technology. |
| Interface | Dual USB interface |
| Cable length | Standard1.5M or 2.0M, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified, MIL-STD-461G (EMC, EMI, EMS, ESD) andMIL-STD-810H( (high and low wide temperature, low pressure, humidity, vibration,shock, temperature shock, rain,dust, salt mist, fungus, solar radiation etc.) | |
| Protection Level | IP65dynamic(front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
