Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

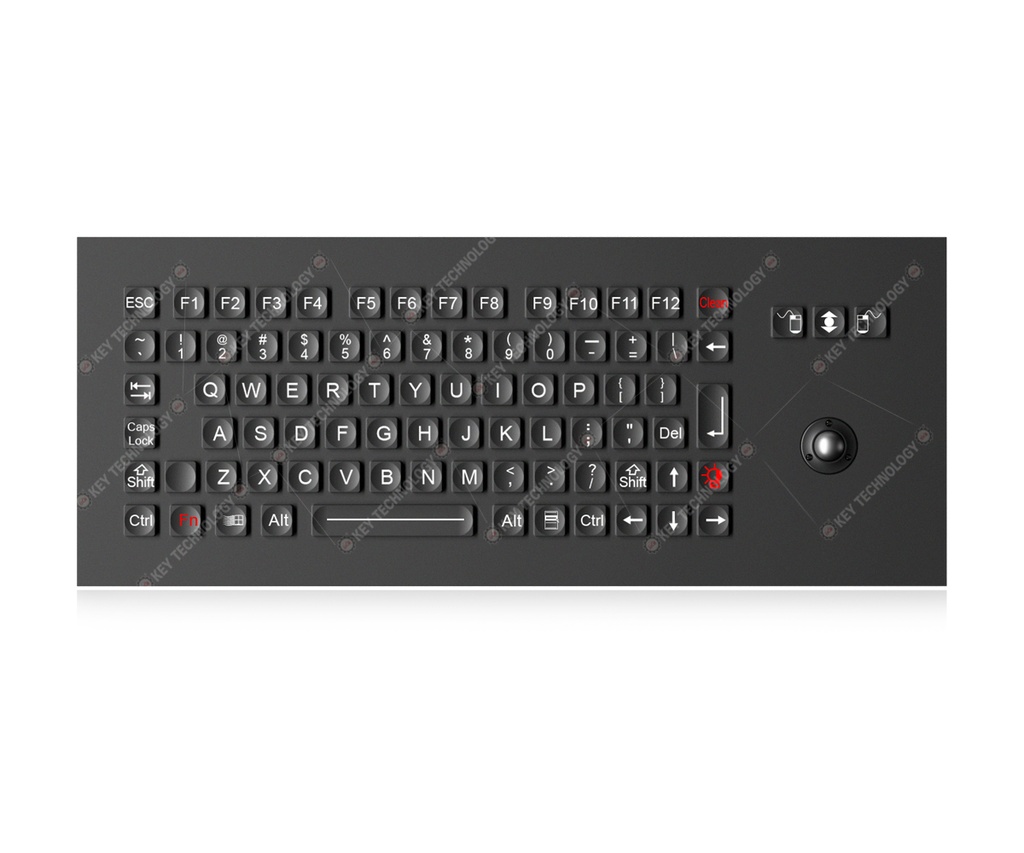

85 keys (including 3 mouse buttons) IP65 dynamic waterproof vandal proof stainless steel industrial keyboard with 14.0mm detachable black hardened resin laser trackball module with 1200 DPI resolutions for fast and accurate cursor movement, which can be removable for easy cleaning. Fully sealed and rugged industrial PCB with carbon-on-gold key switch technology with stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, as well as strong durable polymer keys caps, 12 functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. FN + CLEAN combination keys to lock/disable keyboard for easy cleaning without taking away the keyboard from PC. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling above the 14.0mm laser trackball. Adjustable backlight included (Red or Blue optional). Super quality durable black titanium electroplated stainless steel front plate with sealing gasket and threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD optional.
DIMENSION: 361.0mm x 145.0mm (front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 85keys(Including 3 mouse buttons), durable and robust polymer keys |
| Keystravel | 1.50mm±0.10mm |
| KeysSize | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x68.0mm for space bar |
| Actuation Force | 1.8±0.2N for key 14.0mm x 14.0mm (pressure point ),2.6±0.2N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate | 1.50mm stainless steel plate with super quality durableblacktitaniumelectroplatedsurface treatment |
| Back Plate | 1.50mm thickness stainless steel plate |
| Trackball | 14.0mm detachable black hardenedresin laser trackball module with1200 DPI resolutions |
| G.W. | 1.60KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off), 300mA (with backlight on) |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | USBor PS/2 |
| OS | All Windows，Linux, Unix, Mac OSX，Vxworks，Android，（U-costo be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +60℃ |
| Storage temperature | -45℃ to +70℃ |
| Operating RH | 3%-95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC60512-6 |
| Dry heat test at +85℃ | 10 days, IEC60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
