Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

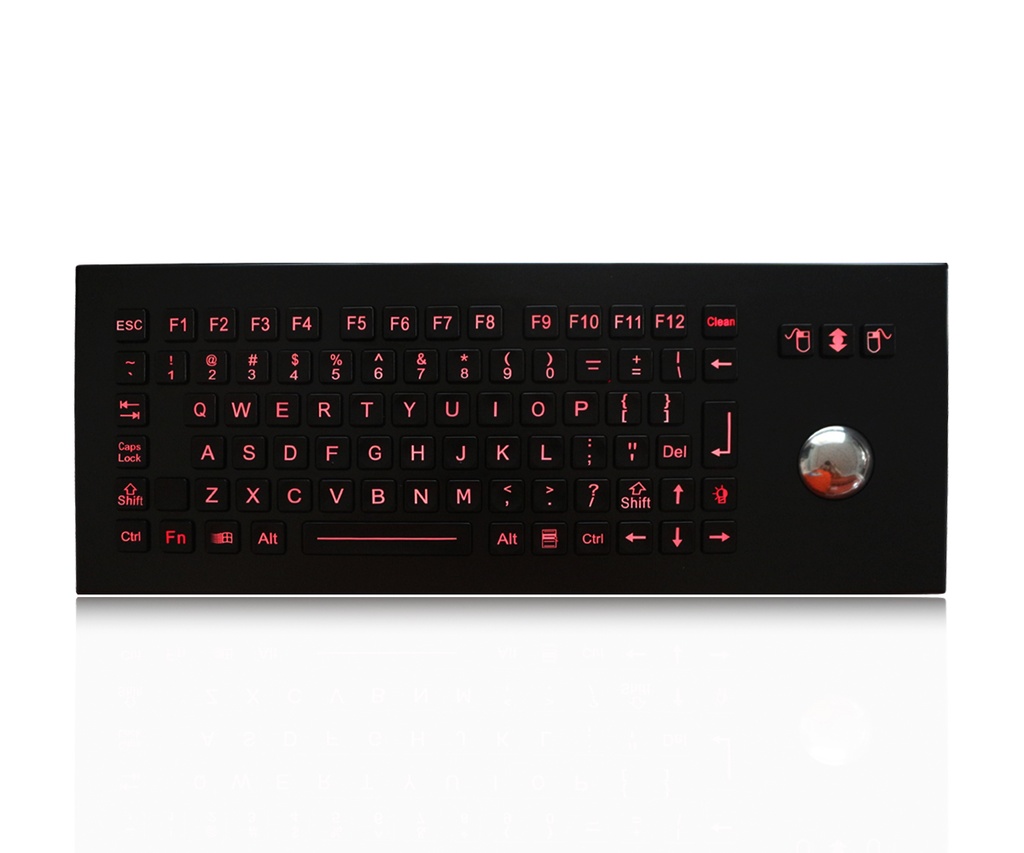

DESCRIPTION: 85 keys(Including 3 mouse buttons)IP68 dynamic water proof vandal proof stainless steel industrial keyboard with durable polymer keys and IP68 dynamic washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position, with fully sealed and rugged industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. High quality durable black titanium electroplated on the top stainless steel plate, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, strong durable polymer keys caps with laser technology for backlight out, with adjustable backlight(Blue or Red Backlight) included, movable stand alone DESK TOP VERSION. FN + CLEAN combination keys to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD optional.
DIMENSIONS: 361.0mm x 145.0mm x 50.5mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 85keys(Including 3 mouse buttons), durable and robust polymer keys |
| Keystravel | 1.50mm±0.10mm |
| KeysSize | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x68.2mm for space bar |
| Actuation Force | 1.8±0.2N for key 14.0mm x 14.0mm (pressure point ),2.6±0.2N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than5million of operations |
| Housing | Super quality durable Black Titanium Electroplated |
| Track ball | IP68 dynamic washable 38.0mm stainless steel optical trackball modulewith 800DPI,Silver harden resin trackball optional |
| G.W. | 2.8KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off) ,300mA (with backlight on) |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| Cable length | Standard length at 2.0M. Other cable length is available. |
| OS | All Windows，Linux, Unix, Mac OSX，Vxworks，Android，（U-costo be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dustfungus, solar radiation etc.) | |
| Protection Level | IP68 |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
