Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

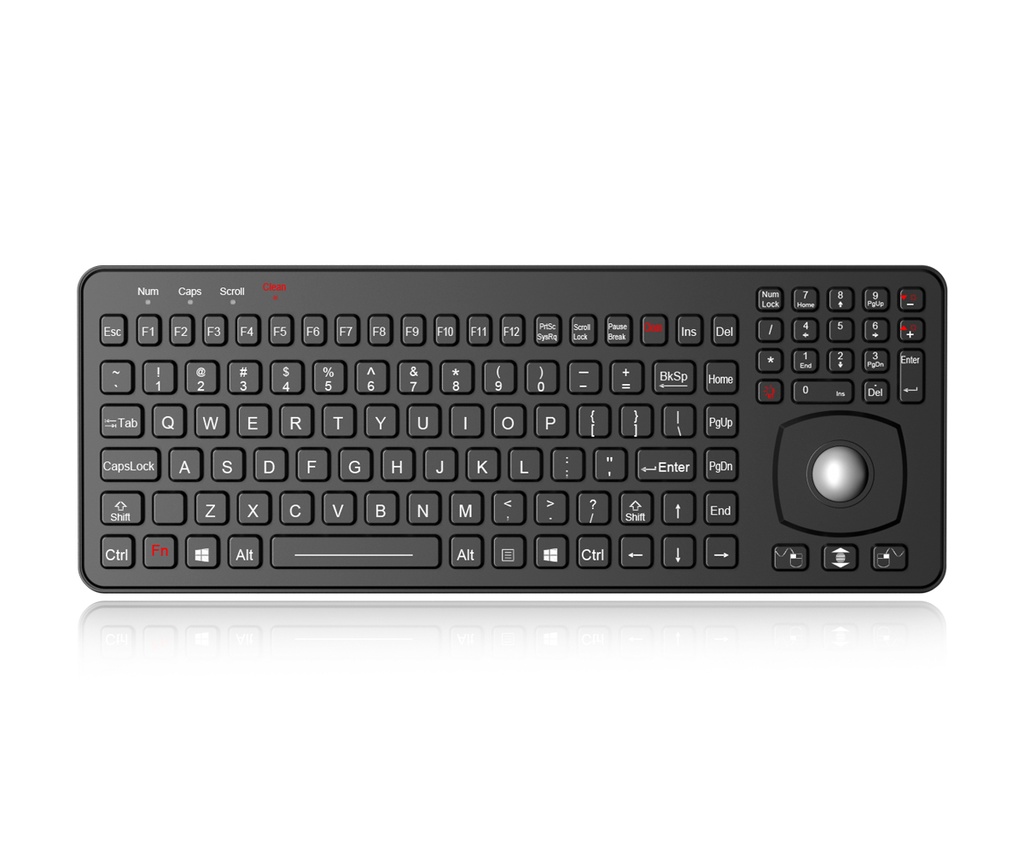

DESCRIPTION: 111 keys IP68 dynamic waterproof sealed & ruggedized silicone rubber Hygienic keyboard with full keyboard functionalities, sealed
& ruggedized IP68 dynamic 25.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position, integrated numeric keypad
and 12 FN keys (F1, F2...F11, F12), with carbon-on-gold key switch technology with key stroke (1.50mm±0.10mm) with extremely good tactile feeling
for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids
under harsh environment, FN + Clean combination key for easy cleaning without disconnecting the keyboard and computer, mountable desk top
version with robust polycarbonate case with VESA and AMPS mounting holes on the backside. Adjustable white backlight included to fit for dim or
dark environment.
DIMENSION: 369.61mm x 139.85mm x 19.67~28.33mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 111 keys (including 3 mouse buttons) |
| Switch Contact Material | Carbon-on-gold key switch technology |
| KeyTopStyle | Protuberant rectangular keys with tactile feeling |
| KeyTravel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| G.W. | 1.20KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mAwhen backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB/PS2 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground stationetc. |
