Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

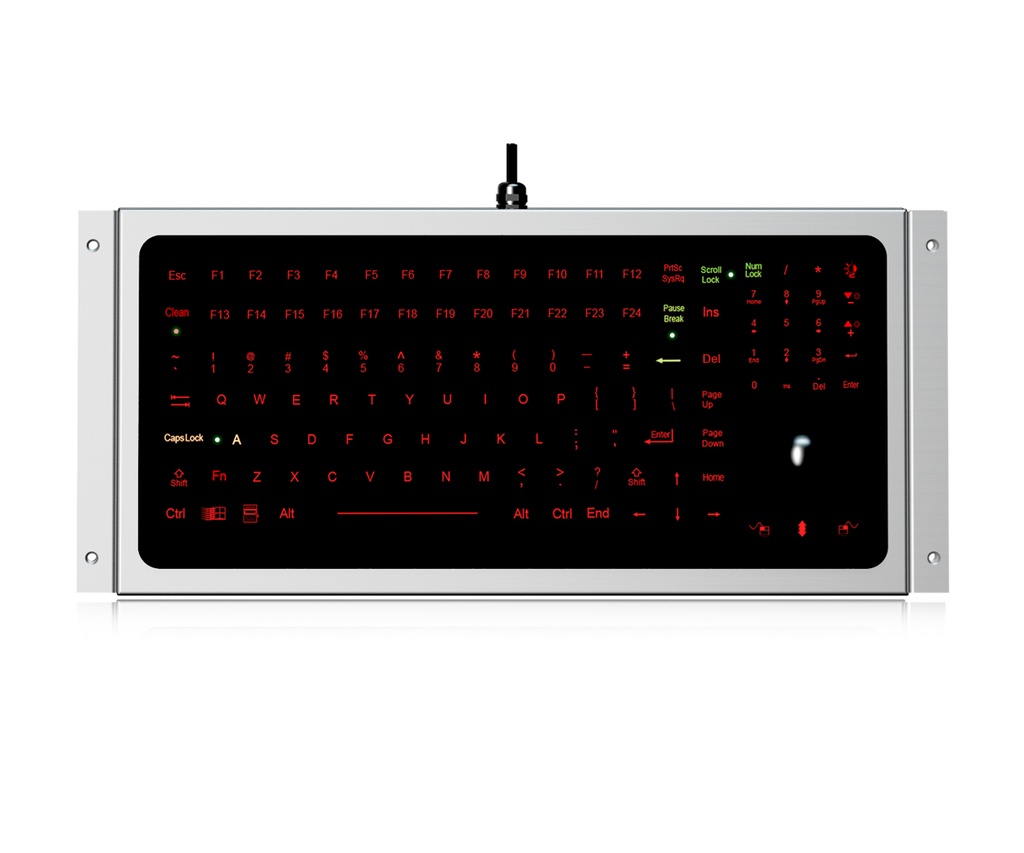

DESCRIPTION: 121 keys IP68 dynamic sealed & ruggedized silicone rubber industrial keyboard, integrated numeric keypad, 24 function keys (F1, F2...F11, F12...F23, F24) on the top line for easy operation, IP68 dynamic rated 25.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation,industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment withstand to most chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via locking/disable the entire keyboard without needing to take away the keyboard from PC, top panel mountable desk top version with IP68 dynamic sealed stainless steel metal housing with brused surface treatment, with stainless steel mounting plate on both sides for panel mounting optional, adjustable industrial backlight included. Military level optional.
DIMENSIONS: 400.8mm x 196.4mm x 31.0mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 121 keys (including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key Size | 11.33mm x 12.67mm for normal keys |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations. |
| Trackball | 25.0mm diameter |
| G.W. | 2.00KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,UAV ground station etc. |
