Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

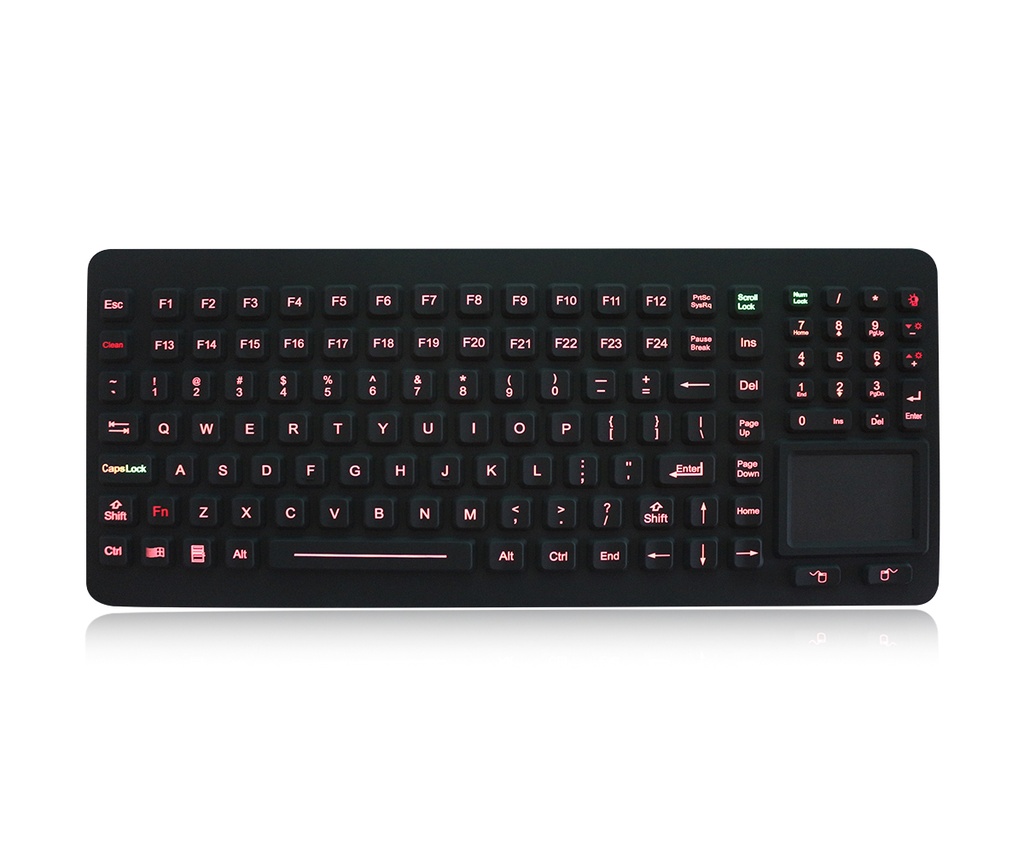

DESCRIPTION: 120 keys IP65 dynamic rated & ruggedized silicone rubber military keyboard with full keyboard functionalities, integrated numeric keypad
and 24 FN keys (F1, F2...F11, F12...F23, F24) on upper line, sealed & ruggedized tough touchpad for fast and accurate input, with carbon-on-gold key
switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating &
antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via
locking/disable the entire keyboard without needing to take away the keyboard from PC, top panel mounted solution with exposed PCBA without any
cover and sealed along the edge by glue/adhesive, adjustable red backlight included. Designed to meet MIL-STD-810H (high and low wide temperature,
low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional),
as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility,
consistency, and continuity.
DIMENSIONS: 379.0mm x 169.0mm(L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 120 keys (including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key Size | 16.0mm x 15.8mm for normal keys |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations. |
| Touch pad | 1.3mm thick PCB, containing polyester film |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5V ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 0.80KGs |
| Mounting solution | Front panel mountedwith exposed PCBA without any cover, (or front panel mounted withpolycarbonate plastic frame with mounting studs, orwith ruggedstainlesssteel backplatewith mountingstuds optional) |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mAwhen backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified,MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock,temperature shock, rain, salt mist, dust, fungus, solar radiation etc.) | |
| Protection Level | IP65 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAVground station etc. |
