Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

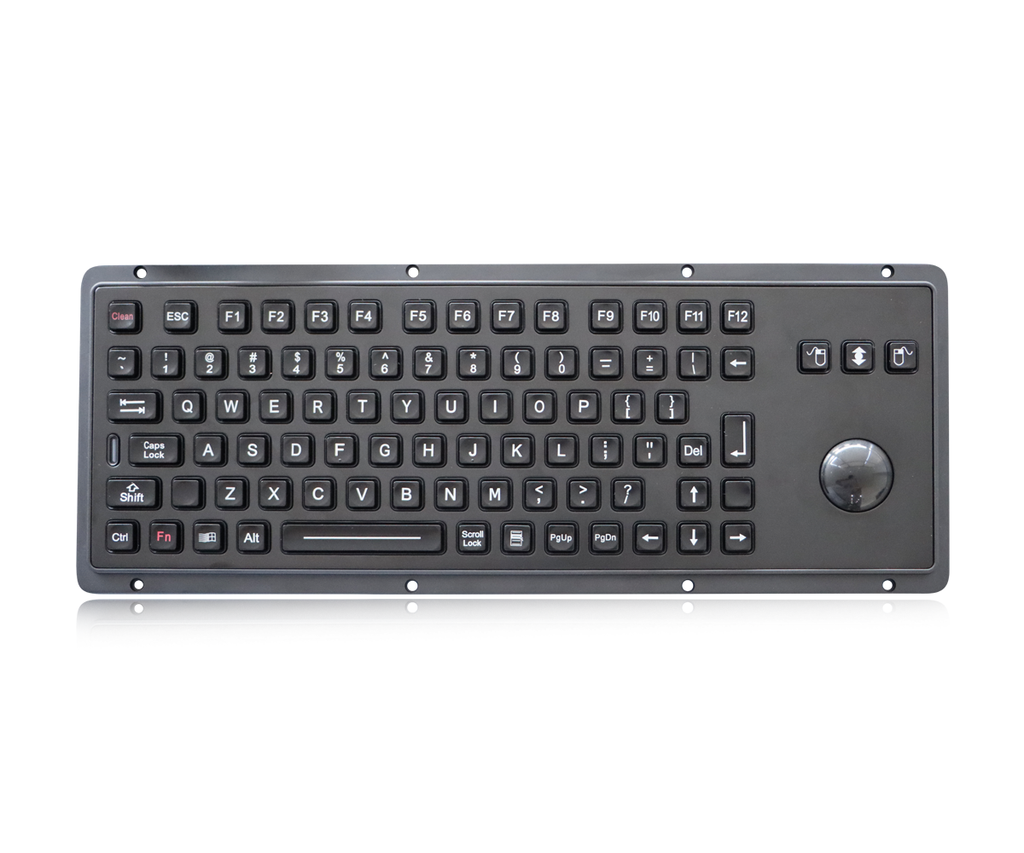

DESCRIPTION: 85 keys IP65 sealed and rugged vandal proof industrial and marine keyboard with integrated 38.0mm mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position, with FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) on the top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, red FN+ clean key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC to avoid mis-operation, high quality durable black titanium electroplated on the top stainless steel plate included, rear panel mounted.
DIMENSIONS: 370.9mm x 129.3mm (front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 85keys(Including 3 mouse buttons), durable and robust polymer keys |
| Key top style | Protuberant rectangular keys |
| Actuator/keys materials | Polymer |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N fornormal keys, 2.0N±0.2N forEnterkey (pressure point) |
| Track ball | 38mm (1.5') diameter,IP65 Mechanical trackball |
| Switch life | more than5million of operations |
| Lettering | laser-etched or high quality ink print |
| G.W. | 2.00KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,UAV ground station etc. |
