Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

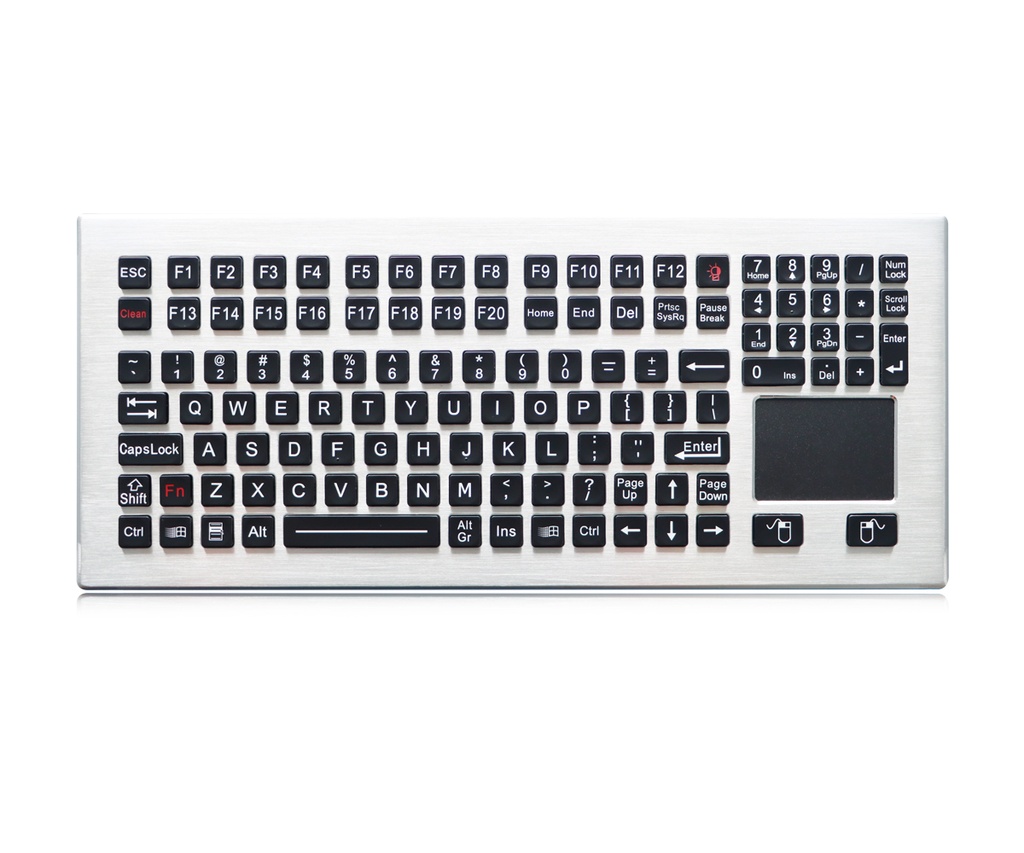

DESCRIPTION: 116 keys compact format IP68 dynamic water proof & vandal proof stainless steel industrial keyboard with individual durable and
robust polymer keys with full keyboard functionalities.Sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long
stroke(1.20mm±0.10mm)with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, ...F23, F20 are
on the top line for easy operation, individual numeric keypad integrated, with integrated IP65 sealed and ruggedized tough touchpad for fast and
accurate cursor position, one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. High
quality scratch-proof durable black titanium electroplated on the top stainless steel plate optional, Movable desktop version.The full keyboard can
be locked/disabled via FN + Clean combination keys for easy cleaning without taking the keyboard away from PC. It is good for outdoor application
with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 383.0mm x 167.0mm x 21.5mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 116keys(Including 2 mouse buttons),durable polymer keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x68.2mm forspace bar |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 2.0N±0.2N for key 14.0mm x 14.0mm (pressure point ),3.5N±0.20N for key 14.0mm x28.0mm (pressure point) |
| Switch life | more than5million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Housing | Super quality brushed stainless steel |
| G.W. | 2.5KG |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off) ,300mA (with backlight on) |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable lengh | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,UAV ground station etc. |
