Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

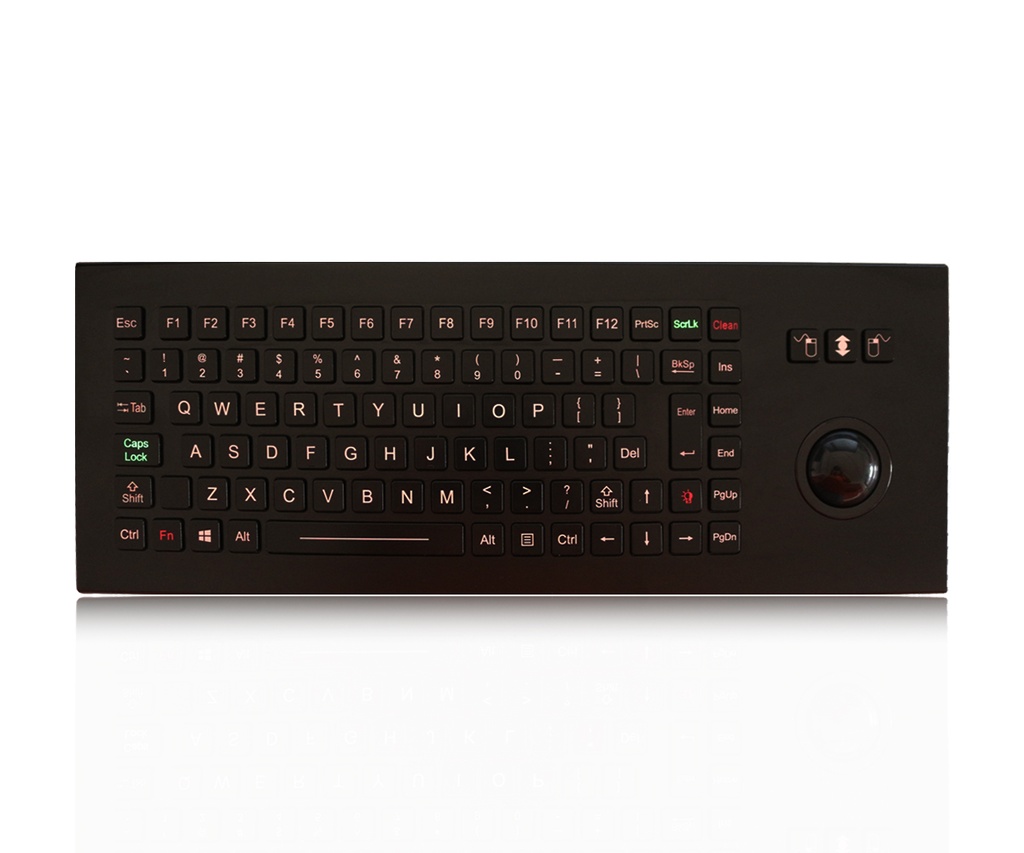

DESCRIPTION: 92 keys compact format IP68 dynamic water proof vandal proof stainless steel military keyboard with durable polymer keys, with IP65 static 38mm mechanical trackball module with 400DPI resolutions, with 12 function keys F1, F2, ... F12, sealed and ruggedized Military Grade PCB electronics module with carbon-on-gold key switch technology with stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on whole keyboard plate and housing, one complete silicone rubber alone the rear stainless steel plate, Movable stand alone DESK TOP VERSION. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC. Red/ white backlight is included. Aviation plug or USB interface is optional. The whole keyboard and trackball part designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand and dust, fungus, solar radiation etc.), as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. It is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil, dirt, salt mist etc.
Dimensions: 390.0mm x 145.0mm x 36.5mm(L*W*H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 92keys(Including 3 mouse buttons), durable and robust polymer keys |
| Key travel | 1.20mm±0.10mm |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar |
| Actuation Force | 1.0 N±0.2N for key14.0mm x 14.0mm (pressure point ), 2.0 N±0.20N for key 14.0mm x28.0mm (pressure point) |
| Switch life | more than5million of operations. |
| Trackball | IP65 static 38mm mechanical trackball module with 400DPI resolutions |
| Interface | Aviation plug or USB interface optional |
| Housing | Super quality brushed stainless steel withblack titanium electroplated on whole keyboard plate and housing |
| G.W. | 3.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off) ,300mA (with backlight on) |
| MeetMIL-STD-461G (EMC, EMI, EMS, ESD)etc.: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand and dust, fungus, solar radiation etc.). | |
| Lifespan | > 5 years |
| Switch Contact Material | MilitaryPCB withcarbon-on-gold key switch technology. |
| Interface | USBor aviation plugavailable |
| Cable length | Standard1.5M or 2.0M, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified, MIL-STD-461G (EMC, EMI, EMS, ESD) andMIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, drop, rain, sand and dust, fungus, solar radiation etc.) | |
| Protection Level | IP68 |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
