Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

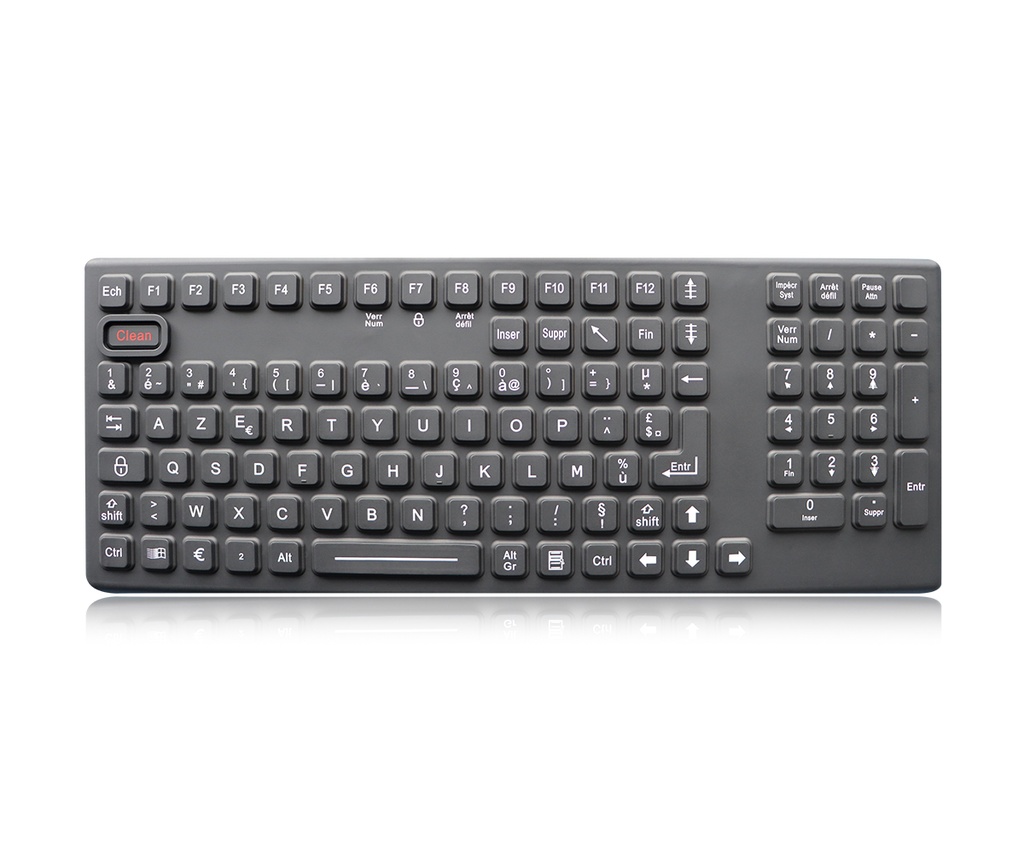

DESCRIPTION: 107 keys IP68 dynamic sealed & ruggedized industrial silicone rubber Hygienic keyboard, with integrated sealed numeric keypad,
function keys (F1, F2...F11, F12) are on upper line; with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with
extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to
most chemicals and liquids under harsh environment, Clean key for easy cleaning via disable/lock the keyboard without needing to take away the
keyboard from PC, movable stand alone desk top version sealed and ruggedized wtih 5.0mm thickness aluminum back plate with sand blasting &
oxygenation surface treatment, adjustable industrial backlight optional.
DIMENSIONS: 390.0mm x 159.0mm x 19.0mm (L x W x H)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 107keys |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key Size | 16.5mm x 16.5mm for normal keys |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations. |
| G.W. | 1.40KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAVground station etc. |
