/ 01
103keys, durable and robust polymer keys
Actuator/keys
/ 02
Protuberant rectangular keys, laser engraved & etched legends on keys are available
Key top style
/ 03
Polymer
Actuator/keys materials
/ 04
1.50mm±0.10mm
Key travel
Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

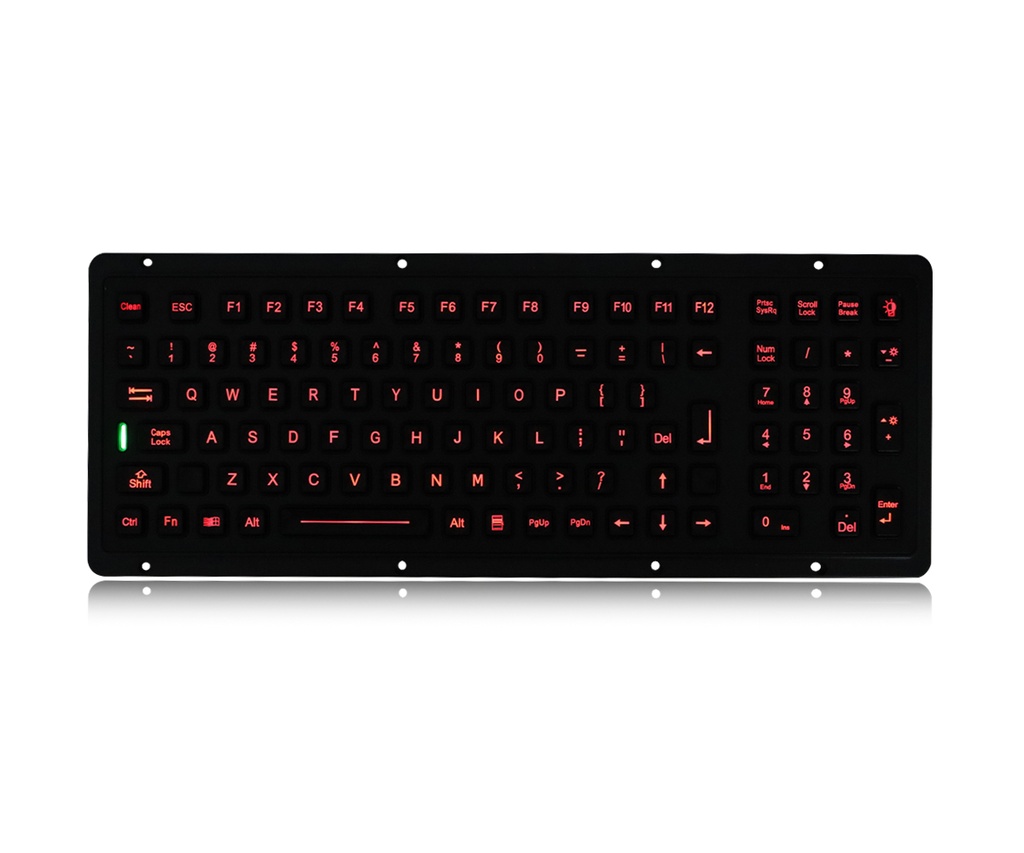

DESCRIPTION: 103 keys IP65 vandal proof industrial & marine keyboard with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, with FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) on the upper line for easy operation, with individual numeric keypad on the right side, with FN+CLEAN key to lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate, rear panel mounted, adjustable red backlight included to fit for dark environments.
DIMENSIONS: 398.0mm x 129.5mm (top panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Actuator/keys | 103keys, durable and robust polymer keys |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends on keys are available |
| Actuator/keys materials | Polymer |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N fornormal keys, 2.0N±0.2N forEnterkey (pressure point) |
| Switch life | more than5million of operations |
| Lettering | laser-etched or high quality ink print |
| G.W. | 1.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA for keyboard without backlight.300mA for keyboard with backlight on. |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 |
| Vandal resistant | IK09 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop,UAV ground station etc. |
