/ 01
2keys
Keys
/ 02
Micro keyswitch technology
KeyTechnology
/ 03
40 Counts /mm
X/Y axis location detection resolution
/ 04
relative
X/Y position report
Description

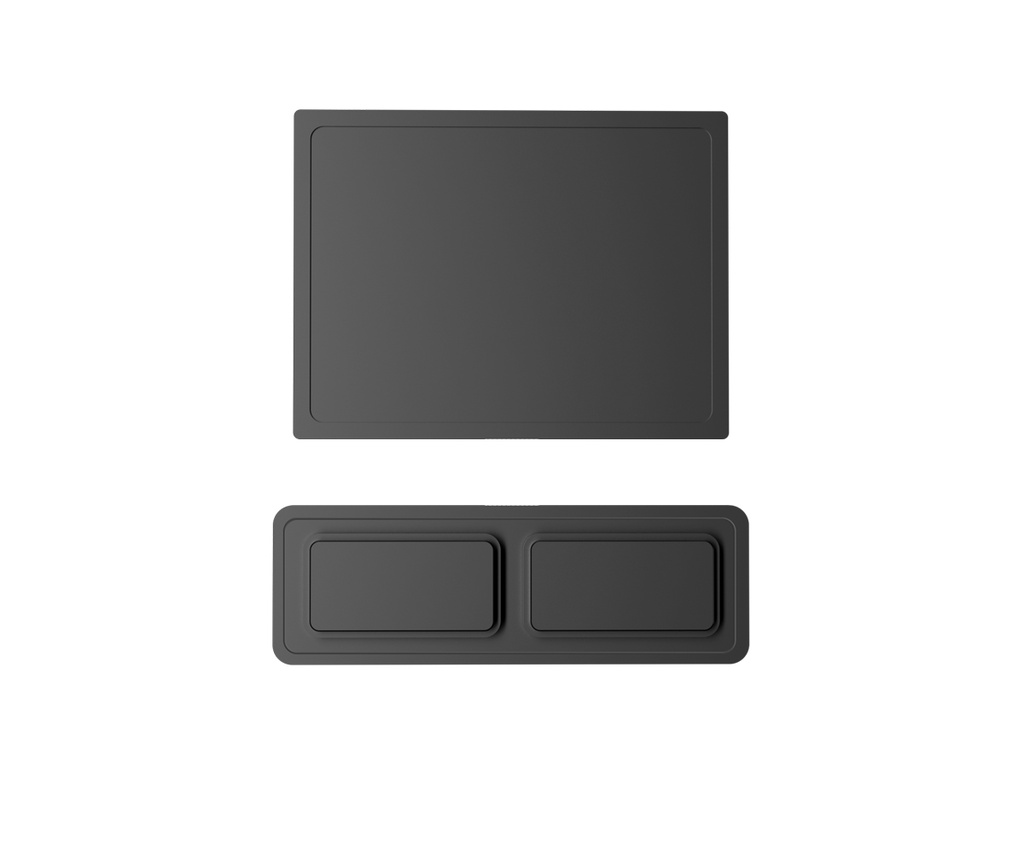

DESCRIPTION: AW-TP6549-USB+2KEY is a high performance humanize designed touchpad module especially for Laptops, Notebooks and
EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers. Function as complete
computer mouse via USB interface. Plug-and-play. With multi-touch functionality optional in difference with conventional mouse. USB interface,
with 2 external fully waterproof mouse buttons with micro key switch technology for comfortable tactile feeling.
DIMENSIONS: 65.0mm x 49.0mm (L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 2keys |
| KeyTechnology | Micro keyswitch technology |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending oncable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Current rating (active mode) | <10mA |
| G.W. | 0.20KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +55℃ |
| Storage temperature | -30℃ to +70℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| Protection Level | IP65 (front panel) |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook,PC, UAV ground station etc. |
