/ 01
86keys
Keys
/ 02
Scissors switch technology
Keyswitch
/ 03
1.20mm±0.20mm
Key travel
/ 04
0.6N±0.2N (pressure point )
Actuation Force
Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

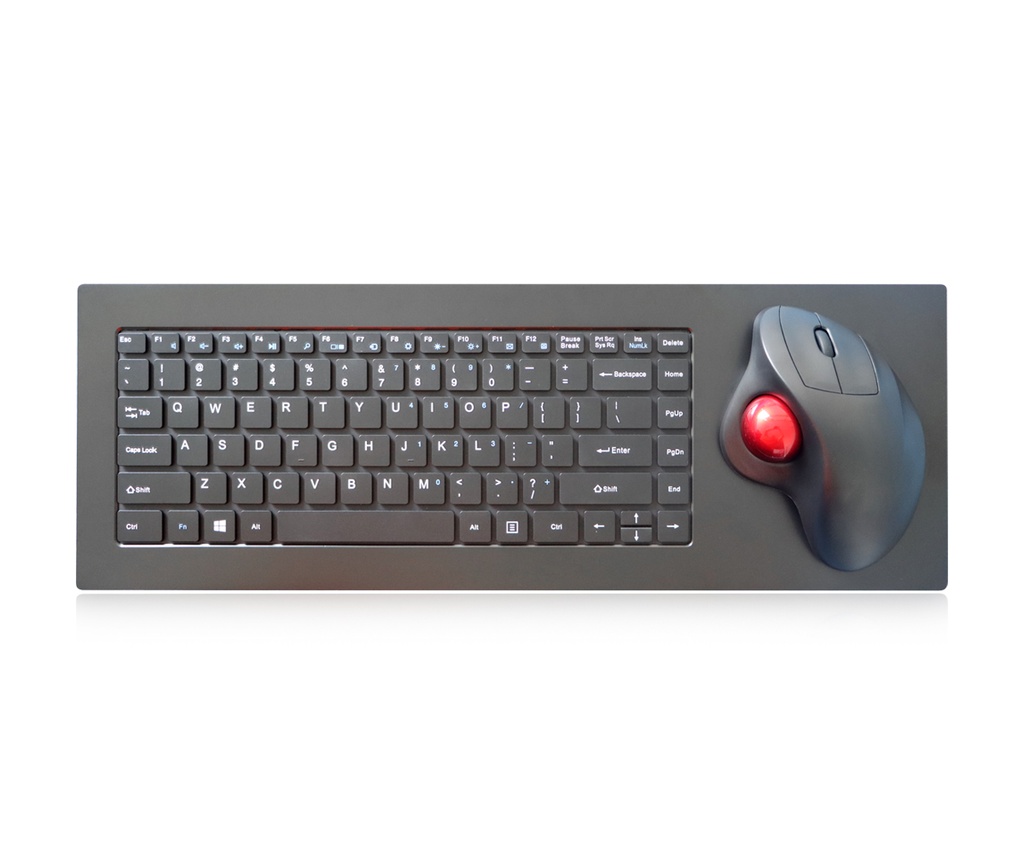

DESCRIPTION: 86 keys IP54 static sealed & ruggedized ABS plastic keyboard with scissors switch technology, with 34.0mm optical thumb ball mouse
with 500 CPI resolutions for fast and accurate cursor position, 12 FN keys on the top line for easy operation, scissors switch technology with 1.20mm
key stroke with long lifespan with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing,
no stuck key, no repeat key output during the keyboard operation, stainless steel housing with high quality black titanium surface treatment,
built-in top panel mounting version.
DIMENSION: 440.0mm x 153.0mm (Front panel)
Specifications
| MECHANICAL DATA | |
|---|---|
| Keys | 86keys |
| Keyswitch | Scissors switch technology |
| Key travel | 1.20mm±0.20mm |
| Actuation Force | 0.6N±0.2N (pressure point ) |
| Switch life | more than5million of operations |
| G.W. | 2.00KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB/matrix output |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | 0℃ to +45℃ |
| Storage temperature | -10℃ to +55℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP54 |
| Key Lifespan | >5million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
