Specifications
| Language | Czech (QWERTZ), English (US), Slovak, Polish, Custom |
Description

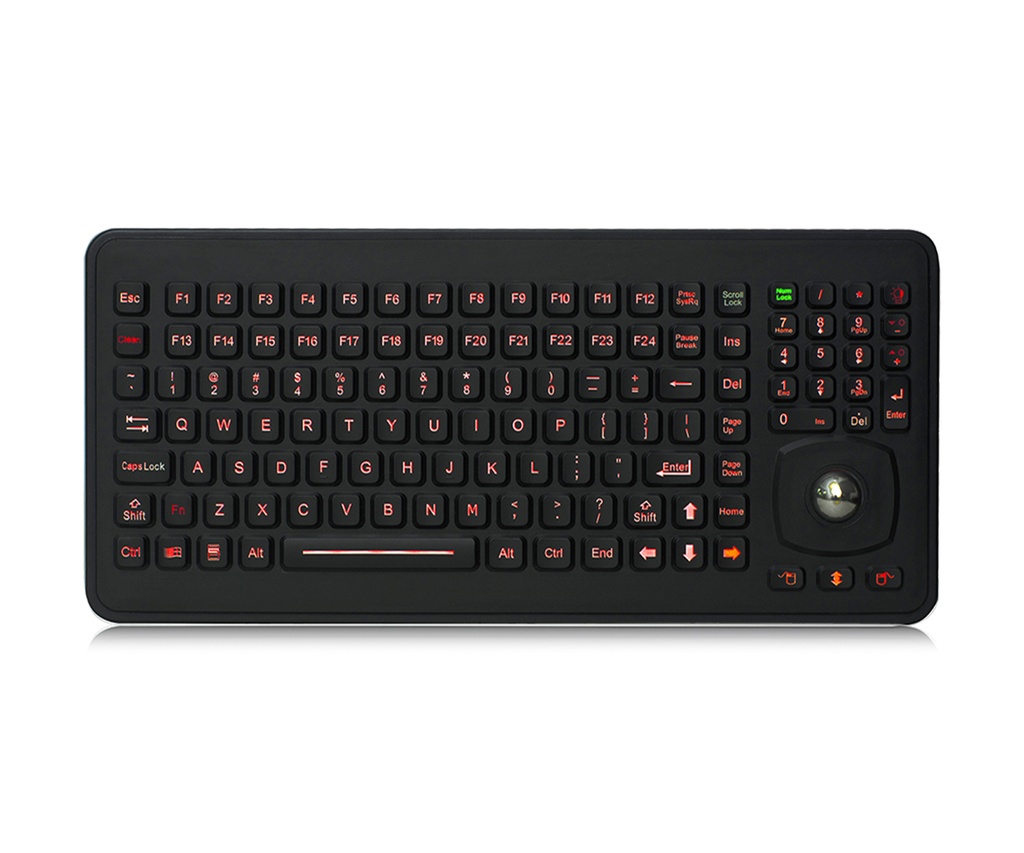

DESCRIPTION: 121 keys IP65 dynamic rated ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated
numeric keypad and 24 FN keys (F1, F2...F11, F12...F23, F24), sealed & ruggedized IP68 dynamic 25.0mm optical trackball module with 800 DPI
resolution for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely
good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most
chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to
take away the keyboard from PC, top panel mounted solution with exposed PCBA without any cover and sealed along the edge by glue/adhesive,
adjustable industrial backlight included, industrial level, MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock,
salt mist, temperature shock, drop, rain, sand and dust, fungus, solar radiation etc.)
DIMENSIONS: 389.0mm x 179.2mm(L x W)
Specifications
| MECHANICAL DATA | |
|---|---|
| Key | 121 keys (including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key Size | 11.33mm x 12.67mm for normal keys |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than5million of operations. |
| Trackball | 25.0mm diameter |
| G.W. | 0.80KGs |
| Mounting solution | Front panel mounted with exposed PCBA without any cover (front panel mounted with ruggedstainlesssteel backplate with mounting studs, or with polycarbonate plastic frame with mounting studs optional) |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHScompliant, CEandFCCcertified, MIL-STD-810H (high and low wide working temperature, low pressure, humidity, vibration, shock,salt mist, temperature shock, drop, rain, sand and dust, fungus, solar radiation etc.) optional | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV groundstation etc. |
